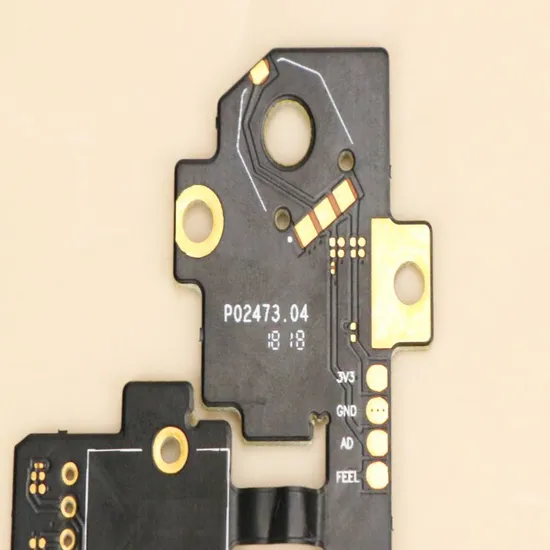

Digital Products Rigid-Flexible PCB board circuit factory with Customized Flexible,High Quality Flex PCB Assembly FPC FPCB Fabrication Flexible PCB manufacturer
| Process parameters |
| Number of layers of soft board | 1~8 |
| Maximum processing area | 1900mm*250mm |
| The thickness of the finished product of the processed plate | 0.036mm~2.4mm |
| Wire copper foil thickness | 9μm~70μm (1/4oz~2oz) |
| Minimum hole diameter | ≥4mil (0.1mm) |
| Minimum line width/line spacing | 1.8mil/1.8mil(0.045mm/0.045mm) |
| Surface treatment process | chemical immersion gold, OSP, electroless nickel gold plating, electroplating nickel gold plating |
| Reinforcement fit tolerance ±0.2 | ±0.2 |
| Shape tolerance: steel mold tolerance | ±0.1mm |
| precision mold tolerance | ±0.05mm |
| Impedance tolerance ±10% | ±10% |
| Capacity |
| Single Layer | 3500 square meters/month |
| Ordinary (impedance) double Layer | 14000 square meters/month |
| 3-4 layer soft board | 1500 square meters/month |
| 5-6 layer soft board | 1300 square meters/month |
| 7-8 layers soft board | 1000 square meters/month |
| Sample delivery time |
| Single Layer | 2-3days |
| Ordinary (impedance) double Layer | 3-4days |
| 3-4 layer soft board | 7-9days |
| 5-6 layer soft board | 9-12days |
| 7-8 layers soft board | 12-15days |
| | |
| The first mass production delivery time |
| Single Layer | 6days |
| Ordinary (impedance) double Layer | 7days |
| 3-4 layer soft board | 12days |
| 5-6 layer soft board | 14days |
| 7-8 layers soft board | 15days |
