Jerrycan/Lubricate Oil Bottle Machine for Plastic Bottles

Product Description

Product Description

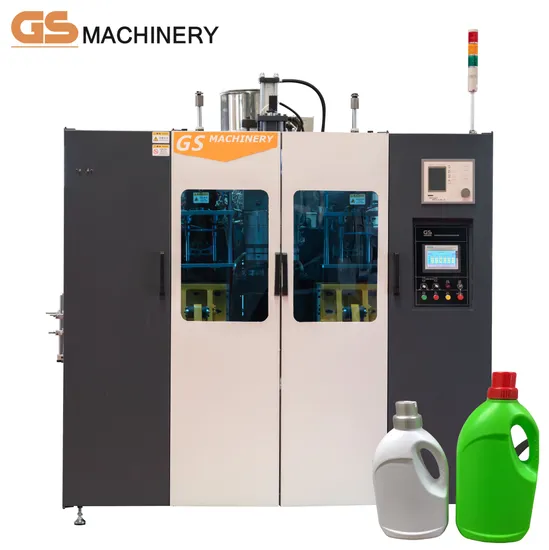

GS-5L-II Double Station Machine
GS-5L-II Double Station Machine The GS-5L-II double station machine is designed to meet the diverse production needs of English-speaking natives. With its additional high-precision linear guide station, this machine offers enhanced performance compared to single station machines. It is capable of producing a wide range of materials, including PE, PP, EVA, TPU, and more. The maximum blow volume is 5L, making it suitable for various applications.
Featuring a double station clamping mechanism with a high-precision guide and large arm cylinder axle, the GS-5L-II ensures stable and efficient operation. The extrusion system is equipped with a hard gear surface reducer and a Japan inverter, providing reliable power transmission. The die system incorporates a central-incoming extrusion die made of special steel for optimal performance.
The hydraulic system of the GS-5L-II utilizes Japan hydraulic valve seal and proportional control, ensuring precise control over oil flow and pressure. The control system consists of a Japan PLC and an imported HMI, offering convenient operation and automation. The machine is designed to meet CE safety standards, prioritizing user safety.
Key Features:
Maximum blow volume of 5L, suitable for PE, PP, EVA, TPU, and more
Taiwan DELTA servo system available for energy consumption savings of up to 20%
Customizable screws, die mandrels, and channel styles for different plastics
Convenient refueling, color change, purge, disassembly, and cleaning with die head
Double proportional valve control for smooth and fast action
Toggle-balanced clamping frame with Taiwan liner guide rail for great clamping force
16 blow pins perpendicular to the mold pin blow hole for easy color change
Computer intelligent control system for convenient operation and process modification
Deep mirror treatment inside the die head for smooth flow channels
Strengthened and hardened cold treated screws and wear-resistant barrel
Components produced with Japan's CNC machine tools for reliable quality
Experience the superior performance and reliability of the GS-5L-II double station machine from Zhangjiagang GREAT Supreme Industry Limited. Upgrade your production capabilities and achieve outstanding results with this advanced blow molding machine.
Detailed Photos
Certifications
Packaging & Shipping
Company Profile
Zhangjiagang GREAT Supreme Industry Limited HDPE Blow Molding Machines, Injection Machines, and Plastic Molds
Zhangjiagang GREAT Supreme Industry Limited is a professional enterprise dedicated to manufacturing high-quality HDPE blow molding machines, injection machines, and plastic molds. With a focus on technical research, we strive to build a strong reputation and become a renowned brand in the industry.
We have established business relations with over 80 countries in Asia, the Middle East, Africa, South America, and Europe. Our company has specialized departments for machinery development and plastic mold development. Leveraging foreign advanced technology and management systems, along with our solid technical power, including professional engineers, large-scale workshops, and excellent design techniques, we continuously develop different models of blow molding machines to provide the best quality products and services to our customers.
Our extrusion blow molding machine is designed for producing 50ml to 200L PE/PP bottles, jerrycans, and drums. We offer the option of sending an engineer overseas for installation, commissioning, and short-term training. Additionally, all easy-wearing parts or components are readily available in our own warehouse, ensuring prompt replacements when needed. We guarantee the quality of our products and provide excellent customer service.
Our Advantages
Product Description
Zhangjiagang GREAT Supreme Industry Limited Product Description
Toggle-balanced clamping frame with a well-known liner guide rail from Taiwan, providing excellent clamping force and explosion-proof capabilities.
The ability to achieve 16 blow pins simultaneously perpendicular to the mold pin blow hole. The patented die head allows for easy color changes.
A computer intelligent control system that enables convenient operation, setting, and modification of the production process.
Deep mirror treatment inside the die head ensures smooth curve flow channels with no dead ends or carbon residue.
Strengthened and hardened cold treated screws, screw and barrel with exceptional wear resistance. The tube wall thickness is highly uniform.
Various components are produced using Japan's CNC machine tools, with Mazak processing six-sided installation surfaces simultaneously. Imported well-known brands of hydraulic, pneumatic, and electrical parts are equipped to ensure a rigorous process and stable, reliable quality.

After Sales Service
Product Description: Installation & Testing A technician from Zhangjiagang GREAT Supreme Industry Limited will be sent to your location to test the machine. The technician will ensure that the machine is in proper working condition before leaving. Please notify us when everything is ready for installation and testing. Please note that all charges incurred during the technician's visit, including transportation expenses, visa fee, accommodation, and insurance, will be borne by the buyer. If the technician is required to go abroad, a service fee of USD 120/day will be charged within the same time period.
Warranty & Guarantee We provide a 2-year guarantee for the machine once it is running normally at your factory. Within this guarantee period, Zhangjiagang GREAT Supreme Industry Limited will handle all problems related to the quality of the machine. In case of damaged parts (unit price > USD 50), they can be sent back for replacement with new ones. Our company strictly adheres to the requirements of the ISO 9001 quality system. Every spare part is registered before shipment to ensure prompt service. We also offer 24-hour online technical support for any assistance you may require.
Product Parameters

Specification		GS-5L-II
Material		PE,PP…
Max.container capacity	L	5
Number of die	set	1, 2, 3, 4
Machine Dimension	m	3.6×2.3×2.6
Total weight	ton	6.5
Accumulator head		GS-5L-II
Number of die heating	zone	3
Power of die heating	KW	5.8
Max die-pin diameter	mm	80
Center distance of twin-die	mm	160
Center distance of tri-die	mm	110
Center distance of four-die	mm	85
Clamping Unit		GS-5L-II
Clamping force	KN	70
platen opening stroke	mm	135-510
platen size	mm	330×400
Max mould size	mm	350×400
Mould thickness	mm	140-300
Extruder Unit		GS-5L-II
Screw diameter	mm	70
Screw L/D ratio	L/D	25\1
Extruding Volume	Kg/hr	100-120
Number of heating zone	zone	3
Extruder heating power	KW	6-8.2
Extruder driving power	KW	22-37
Power		GS-5L-II
Oil pump drive power	KW	7.5
Fan power for screw	KW	0.5
Total power	KW	52.5-59
Air pressure	Mpa	0.6
Air consumption	m³/min	1-1.5
Average energy consumption	KW	33

---
