High Quality Standing Seam Selflock Cold Roll Forming Machine

Product Description

Product Description

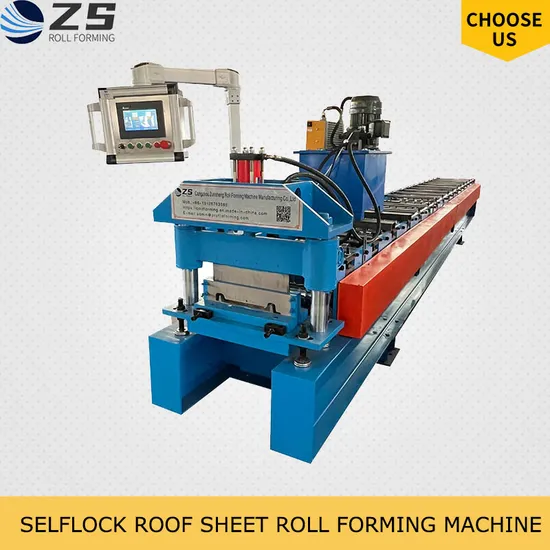

Self Lock Metal Join Hidden Roof Sheet Roll Forming MachineSelf Lock Metal Join Hidden Roof Sheet Roll Forming MachineThe Self Lock Metal Join Hidden Roof Sheet Roll Forming Machine stands as one of the most in-demand types of roll forming equipment. Engineered to craft a variety of steel roof sheets, it is ideal for a range of applications including buildings, factories, supermarkets, and more. This versatile machine accommodates coil widths of 500mm and thicknesses ranging from 0.3mm to 0.8mm. Built with a robust 16mm thick wall board type frame, it ensures durability and strength. Capable of achieving a maximum operating speed of 15m/min, the machine features a user-friendly PLC system with a touch screen for seamless operation and ease of use.
Profiles:
We can customize the machine according to your specific design and requirements:

Hydraulic Curve Machine:

Roll Forming Machine Components:

No.	Name	Qty
1	De-coiler	1 Set
2	Forming Machine	1 Set
3	Hydraulic Cutting Device	1 Set
4	PLC Control Box	1 Set
5	Hydraulic Pump Station	1 Set
6	Production Support Table	1 Set
7	Pre-sliding Cutter	1 Set

Working Flow:
Uncoiler ----- Molding Core ----- Hydraulic System ----- Automatic Control System----- Automatic Shearing Mechanism ----- Products Receiving Tables
Detailed Photos
Advanced Feeder System:
Experience the latest innovation in our feeder system design.
Ensure stability with minimal coil swing during operation.
Effortless and precise adjustments.
Working width: Accommodates up to 600mm.
Superior Main Roll Forming System:
Driving Type Options: Chain (standard), Gear, or Gearbox;
Forming Model: Choose between Integral Forming or Split Forming;
Machine Structure: Available in Medium-plate Type (standard), Arch Type, or Guide-pillar Type;
Roller Material: Premium 45# steel.
Shaft Specifications: 45# steel, 70mm diameter.
Motor Power: Options of 4.0kW, 5.5kW, or tailored to design specifications;
Main Frame: Robust 350# or 400# H-beam steel, precisely welded.
Intricate Roller Details:
CNC-processed rollers ensure high precision, delivering perfectly formed products consistently.
State-of-the-art Hydraulic Cutting System:
Operation Modes: Hydraulic Cutter (standard) or Electric Cutter;
Cutter Blade Material: Cr12 for superior performance.
Efficient Hydraulic Oil Pump System:
Equipped with fan cooling system for optimal performance.
Power: 4kW for reliable operation.
Premium Gear pump for consistent efficiency.
Seamlessly Automatic Seaming Machine:
Operates efficiently with electric power.
Sophisticated PLC Control System
Automatically controls quantity and cutting length with precision.
Input production data (batch, pieces, length, etc.) via touch screen for fully automated production.

Combined With	PLC, Inverter, Touch Screen, Encoder, etc
PLC	Siemens (German brand) Or Delta(Taiwan brand)
Inverter	Siemens (German brand) Or Delta(Taiwan brand)
7-Inch Color Touch Screen	Siemens (German brand) Or Delta(Taiwan brand)
Encoder	Omron (Japan brand)Switch Bottom, Indicate Light, Power Supply, Intermediate Relay, AC Contactor
Thermal Relay	Siemens (German brand) Or Delta(Taiwan brand)
Air Switch	LG-LS(Korea brand)Cut-to-Length Tolerance≤±1 mmControl Voltage 24V

Comprehensive After-Sale Service:
1. Warranty period: 18 months from the machine's receipt by the client.
Within 24 months, we provide replacement parts free of charge via courier.
2. Lifetime technical support for all our machines.
3. Technicians available for on-site installation and training at the client's factory, with additional cost.
Trade Terms:

Minimum order quantity (MOQ)	1 Set
Delivery time	about 60 workdays
Port of loading	port of Tianjin
Type of payment	by T/T or by L/C
Export	to more than 80 countries and regions, including South Korea,Taiwan, UK, Ireland, Greece, Australia, USA, Mexico, Brazil, Russia,Saudi Arabia, UAE, Iran , India, Singapore, Malaysia, Thailand, Indonesia, Philippines, Vietnam, South Africa, Nigeria, Egypt, etc

Impeccable Packing Style:

Packing method

Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.
