Liquefied Gas Low Pressure (0.1MPa<1.6MPa) Medical Oxygen Cylinder Storage Tank

Product Description

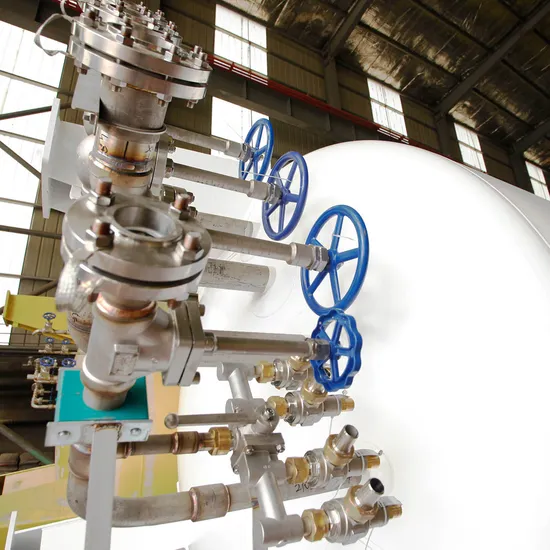

Cryogenic Liquid tank
Liquefied gases are used in a wide range of applications, including metal processing, medical technology, electronics, water treatment, energy generation and the food industry. Today, more and more of these industrial gases are being delivered to customers in liquid form at cryogenic temperatures, enabling them to be stored on site for later use. We offer cryogenic tanks for the following liquefied gases:
Liquid nitrogen (LIN)
Liquid argon (LAR)
Liquid oxygen (LOX)
Liquid carbon dioxide (LCO2)
Liquid natural gas (LNG)
Liquid nitrous oxide (LN2O)
Our tanks can be used for a wide range of applications. They are standardised to ensure smooth distribution logistics and cost-efficient series production.
Each tank is vacuum-insulated and can be delivered as a vertical or horizontal installation. The inner vessels and piping are made of stainless steel to ensure high-grade cleanliness - particularly important for the food and electronics industry. The outside shell is specially coated and a vacuum-perlite system with a molecular sieve adsorbent is applied to ensure outstanding insulation.
Our tanks can be used for a wide range of applications. They are standardised to ensure smooth distribution logistics and cost-efficient series production.
Each tank is vacuum-insulated and can be delivered as a vertical or horizontal installation. The inner vessels and piping are made of stainless steel to ensure high-grade cleanliness - particularly important for the food and electronics industry. The outside shell is specially coated and a vacuum-perlite system with a molecular sieve adsorbent is applied to ensure outstanding insulation.

Size	Full capacity	Effective capacity	MAWP	Diameter	Height	Weight	Vaporization Rate of LN2	Gas Supply amount
:m³	:m³	:MPa	:mm	:mm	:kg	:%/d	:m³/H
VT6/0.8-GB	5.41	5.14	0.8	1816	5200	4740	0.65	200
VT6/1.6-GB	5.41	5.14	1.6	1816	5200	5300	0.65	200
VT11/0.8-GB	11.14	10.58	0.8	2216	6400	7250	0.5	450
VT11/1.6-GB	11.14	10.58	1.6	2216	6400	8150	0.5	450
VT16/0.8-GB	15.96	15.16	0.8	2216	8400	9280	0.53	450
VT16/1.6-GB	15.96	15.16	1.6	2216	8400	10530	0.53	450
VT21/0.8-GB	20.77	19.73	0.8	2216	10400	11400	0.5	450
VT21/1.6-GB	20.77	19.73	1.6	2216	10400	13000	0.5	450
VT31/0.8-GB	31.12	29.56	0.8	2920	8820	17470	0.4	1000
VT31/1.6-GB	31.12	29.56	1.6	2920	8820	20460	0.4	1000
VT50/0.8-GB	49.22	46.76	0.8	2924	12820	24310	0.35	1000
VT50/1.6-GB	49.22	46.76	1.6	2924	12820	29230	0.35	1000
VT59/0.8-GB	58.27	55.36	0.8	2924	14820	28430	0.32	1000

---
