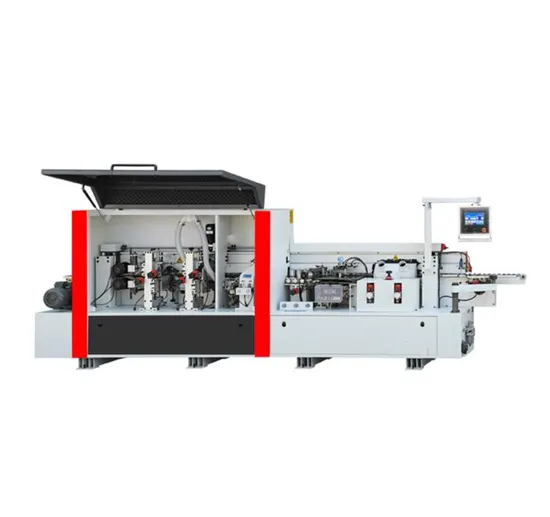

Hicas Woodworking Full Automatic PVC Kdt MDF Edge Banding Machine

Product Description

Hicas Woodworking Full Automatic PVC Kdt MDF Edge Banding Machine Product Description
Product Parameters

Name	Edge banding machine
Model	365J
Electrical lift	yes
Motor power	12kw
Panel width	≥60mm
Panel thickness	9-60mm
Tape thickness	0.4-3mm
Tape width	12-65mm
Feeding speed	0-23m/min
Working pressure	0.7mpa
Machine size	4800*760*1600mm

Detailed Photos

Spray unit	Pre-milling
Isolate the glue on the surface of the panel in up and bottom side.	Remove the possible waving texture on edge to achieve better edge banding affection.

Gluing and Pressing	End cutting
Spread the glue on both banding panel and band, ensure a more solid adhesion force.	High precision trimming with hardened linear guide.

Fine Trimming	Edge Scrapping
Fine trimming of the top and bottom edges. Complete with 2 high-frequency motors.	Scraping eliminates the imperfections resulting from previous machining operations on the top and bottom of the edge.

Glue Scrapping	Structure
Removes excess glue from the top and bottom of the panel.	The monolithic base provides high stability and allows the machine to operate also over several work shifts whilst continuing to deliver high quality standard

Final Product

Related Product
Welcome to contact us for Best Price and Full Details.
Company Profile
1.15 years experience in chinese woodworking machinery market.
2. 8 years exportation experience, have customers in more than 40 countries.
3.Engineer team with +20 years experience.
4.Diamond supplier in made-in-china.
5.Our products are widely sold in made-in-china.
6.Guarantee and After-sale service:
a. 12 months warranty for the whole machine
b. Technical support by phone, email or WhatsApp/Skype around the clock.
c. Friendly English version manual and operation video CD disk
d. Engineer available to service machinery overseas.
7. Customer feedbacks & visits
8.Our company and products have been verified onsite by SGS Group
We are looking for Good customers like you! and Distributor or Agents Wanted!!!
FAQ
1. Do you offer installation?
Our machines are almost assembled before loading in container. It is very easy for installation in your workshop. Video guidance and English manual can be provided freely. Engineers can be sent to service in site if the buyer request. all cost in buyer's account (the machine quotation does not include this cost), including all transportation cost between China and buyer factory (two way), visa and Insurance cost, hotel and eating in buyer country is responsible by buyer, extra labor salary USD200/day.
2. Where can we get replacement parts?
Most of the spare parts are ready in stock. They will be sent to the buyer directly from our warehouse with original prices.
3. How long can we get replacement parts?
Common spare parts can be delivered by express within one week. Some parts can be purchased locally.
4. What technical support do you offer?
1. Technical support by phone, email or WhatsApp/Skype around the clock.
2. Friendly English version manual and operation video.
3. Engineer available to service machinery overseas.
5. Do you have any machines in our country?
Our machines have been sold to more than 20 countries all over the world, like Russia, Singapore, Uzbekistan, The USA,Malaysia,Peru, Colombia, Vietnam, Slovakia, etc.
6. Can you customized the machine?
Our machines can be customized made according to buyers' request.
7. What other machine do you offer?
We provide one-stop shop service of woodworking machines for the buyers. Other kinds of woodworking machines, like sanding machine, CNC router, drilling machine, saw machine can be provided as well.
8. Can you set the system to our language?
Our system supports common languages like Chinese, English, Russian, Spanish, French, German

---
