Zyfire Flexible TPU Well Hose with High Pressure

US$1.00-2.20 1,000 Meters (MOQ)

Basic Info.

Model NO.

bore hose

Hose Coupling Type

Hose Coupling

Fire Hose Length

10-10000m

Working Pressure

18bar

Diameter

1 1/2" - 8"

Lining

With Lining

Weaving Type

Twill & Plain Weave

Hose Coupling Structure

Coupling

Color

Customize

Service Pressure

18 Bar

Burst Pressure

58 Bar

Transport Package

Carton/Wooden Box/Container/Pallet

Specification

Borehose

Trademark

ZYfire

Origin

China

HS Code

5909000

Production Capacity

1000000m/Month

Product Description

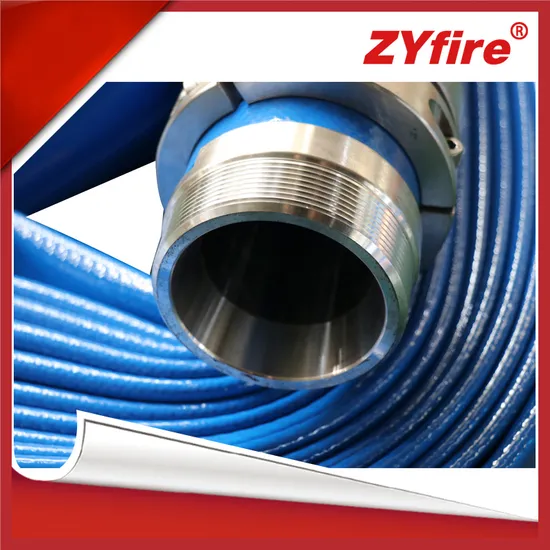

TPU Lay Flat Bore Hose
Borehose --- NSF
TPU Covered Hose
Cover and Lining: TPU, smooth cover with blue polypropylene cable ties/ Polyurethane Straps along the length.
Reinforcement Jacket: High tenacity synthetic jacket.
Application: Mine de-watering, domestic and municipal water supply, test pumping, rural and industrial bore water retrieval, similar ground water projects.
Standard length: 15m (50ft), 30m (100ft), 200m (660ft)

I.D.		Burst Pressure	Tensile Strength	Weight	Max loading	Max Diameteral Swell	Max Extension	Temperature Range	Water PH range
inch	mm	bar	kgs	Kg/m	kgs	%	%	ºC	Below 30ºC	30ºC to 50ºC
1 1/2"	40	52	3000	0.3	1080	15	1	-40 to +50	4 to 9	5 to 9
2"	51	58	4000	0.6	1600
3"	76	58	8000	0.9	3600
4"	102	52	15000	1.5	5000
5"	127	50	18000	2.0	6800
6"	152	44	24000	2.8	8000
8"	200	42	30000	3.5	10800
