Hydraulic Traveling Head Punching Machine for Carpet or Cardboard

Product Description

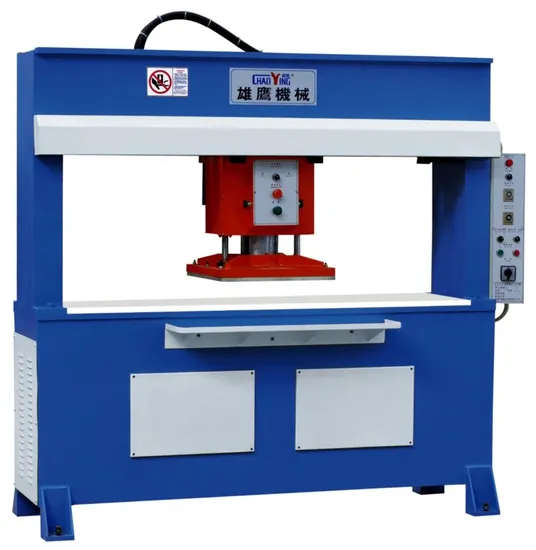

Hydraulic travelling head cutting machine
Use and character
The machine is suitable for cutting single layer or multiple layers of leather, rubber, plastic, paperboard, fabric, chemical fiber, nonwoven cloth and etc. by the cutting die.
1. Travelling head can move to the left &right ,which can provide wide operating visual field.
2.In automatic mode ,travelling head can automatically move to the left &right after cutting ,with easy operation ,and saving operating time.
3.operation with both hands makes high safety.
4.According to the need of users,it can be extra installed rubber roll auto-fefding device to enhance work efficiency.
Technical specification

Maximum momentum	250kN
Seissor speed	0.10m/s
Stroke adjustment	0- 120mm
Range between the working tables	30- 150mm
Size of the upper pressing board	500× 500mm
Size of the pressing board	1600× 500mm
Motor power	2.2kW
Overall dimension	2220× 700× 2050mm
Total weight	1680kg
