Different Varieties Surface Grinding Machine Surface Grinder

US$4,500.00-5,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
KGS200
Abrasives
Grinding Wheel
Controlling Mode
Manual
Automatic Grade
Manual
Cylindrical Grinder Type
Surface Grinding Machine
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Working Surface of Table
160X460mm
Max.Table Load
120 Kg
Grinding Wheel Dimensions
200X25X32/31.75mm
Table Speed
Manual
Vertical Handwheel
0.01mm/Gard
Cross Feed Handwheel
0.02/Gard
Spindle Motor
1.5kw
Spindle Speed
2850 Rpm-50Hz 3420rpm-60Hz
Max.Table Travel
495mm
Max.Cross Travel
185mm
Transport Package
Non-Fumigation Plywood Case
Specification
1470x1170x2145mm, 1300kg
Trademark
Kaite
Origin
China
HS Code
8460191000
Production Capacity
80 Sets/Month

Product Description

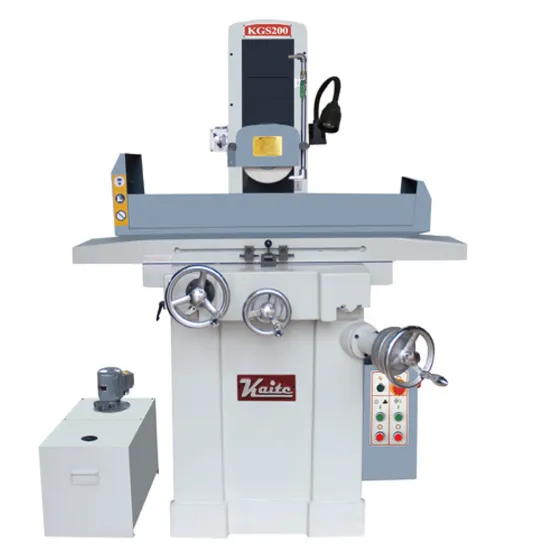

1. Picture
2. Parameters
Parameters Unit KGS200
Working Surface of Table mm 160×460 (6"×18")
Max.Table Travel mm 495
Max.Cross Travel mm 185
Distance Between Table Surface and Spindle Center mm 520
Max.Table Load kgs 120
T-Solt(Number×Width) mm 1×14
Table Speed m/min Manual
Crossfeed Handwheel 1gard mm 0.02
1 rev 5
Automatic Crossfeed of Saddle mm -
Power Cross Feed 50HZ mm/min -
60HZ -
Grinding Wheel Dimensions mm 200×25×32/31.75
Spindle Speed 50HZ rpm 2850
60HZ 3420
Vertical Handwheel 1gard mm 0.01
1 rev 2
Automatic Down Feed Rate mm -
Power Head Increment mm/min -
Spindle Motor kw 1.5
Vertical Motor w -
Hydraulic Motor kw -
Dust Collection Motor w 550
Coolant Motor w 90
Crossfeed Motor w -
Floor Space mm 1900×1900
Packing Dimensions mm 1470×1170×2145
Net Weight kgs 1100
Gross Weight kgs 1300

3. Main Configuration of Grinding Machine
1. Spindle motor: ABB brand.
2. Spindle bearing: NSK brand P4 grade precision ball bearing which from Japan.
3. Main electrical components: SIEMENS brand.
4. Standard Accessories
1 Grinding wheel 2 Wheel flange
3 Wheel balancing base 4 Wheel balancing arbor
5 Extractor 6 Diamond dresser
7 Leveling pad 8 Anchor bolt
9 Tool box with tools 10 Permanent magnetic chuck
11 Cooling system 12 Work light

5. Feature
Table ways use hardened steel linear rails with precision balls for smooth and effortless hand feed. These reliable machines are low maintenance and easy to operate.
6. Company & Factory
Nantong Kaite Machine Tool Co., Ltd.
A Sino-US joint venture machine tool company with KENT INDUSTRIAL (USA) INC.
KAITE specializes in manufacturing precision surface grinding and milling machine since 1999.
KAITE supply the USA quality machines and with China price.
KAITE is located in Nantong city, Jiangsu Province where near Shanghai city and welcome to visit us!
7. Dellivery Picture
