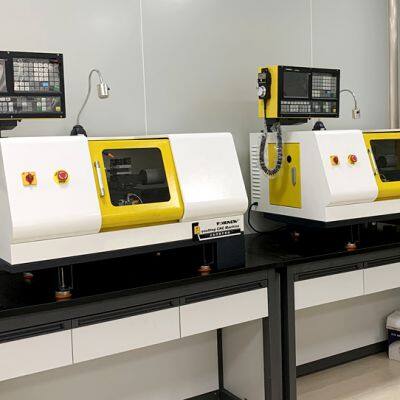

Small CNC Lathe

Product Details

Product Description

Product Description
Product No: CK210Product Name: Small CNC Lathe|
Features
(1).Automatic 4 positions tool post.
(2).With sink and nozzles.
(3).KY 980Tc Turning CNC System,Optional siemens 808D or Mach3
(4). ARM 9 CPU+FPGA,Ethernet network interface,Support B macro function,PLC function,Mutil-language library function.
(5).Lathe CNC machine tools based entirely on the design and manufacture, reflects the structural integrity of facilitate future design ideas.
(6). The standard spec includes MPG hand wheel.
(7). USB and RS232 port, DNC function of USB.
(8). Network interface, supporting for remote monitoring and DNC file transfer processing.
(9). Control speed of G code.
(10). Selection of high -quality casting materials,more compact.
(11). A collection of double-nut ball screw, bearings and couplings with high precision positioning, while adding an automatic oil lubrication system, to protect your machine precision, extended service life.
(12). 220VAC or 110VAC single-phase AC power supply.
(13). Safety electrical components of high quality.
(14). Auto power off when door open.
(15). Applicable industry: technology development, advertising design, art, ocational technical college Education & Training CNC and DIY enthusiasts.
Technical parameters

Turning diameter over bed(max)	210mm
Chuck diameter	100mm
Spindle speed	100-1750r/min(control speed of G code)
Spindle through-hole	20mm
Spindle mount	MT3
Spindle motor power	500W
X travel	80mm
Z travel	290mm
The max moving speed	2000mm/min
The max feeding speed	1000mm/min
Control system	KY 980Tc Turning CNC System,Optional siemens 808D or Mach3
Instruction	DXF+G code template function, converting DXF automatically to G code for processing
MPG handwheel	4 axis
Tool position	4
Tool dimension	10*10mm
Tailstock taper	MT2
Tailstock sleeve diameter	20mm
Travel of tailstock	25mm
Positioning accuracy:	0.02mm
Repeatability accuracy	0.015mm
Power	220VAC / 110VAC
Weight(NW/GW)	180/200KG
Overall dimension	1000580680mm
Packing size	1100700610mm
