Chinese 5 Axis Horizontal Angled Bed CNC Lathe Equipment (BL-H40T/TC/TY)

Product Description

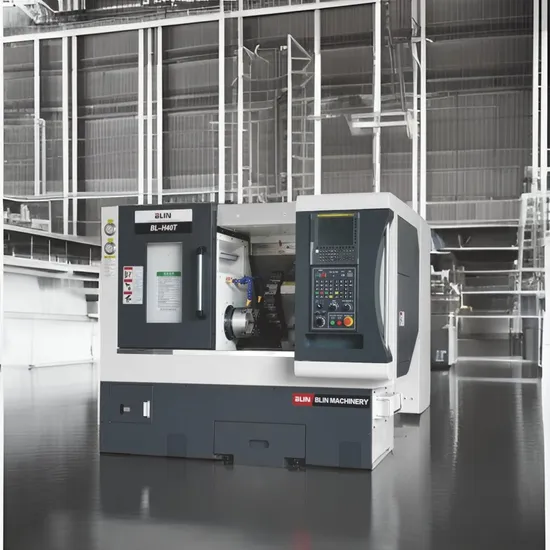

3 axis slant bed cnc lathe machine with tool turret(BL-H40T/H40TC/H40TY)
- Adopt TAIWAN technology, designed by TAIWAN engineer, most parts adopt GERMANY/TAIWAN brand - Adopt 30°integral slant bed design - Z axes adopt ROLLER type linear guideway,super high rigidity - Adopt modularization design, easy for various especial configuration choice, such as tool setter etc - Adopt MEEHANITE class cast iron, after aging treatment, small distortion, good torsional strength, good heat stability - Base adopt multilayer strengthening rib, ensure bed's strength and stability - Adopt high precision integral spindle unit, spindle motor adopt high performance servo motor, big output torque,high speed,wide adjustment range - Adopt high precision C3 class pre-stretched ball screw(double nuts), coupled with feeding motor directly by linkager, no gap,high transmission rigidity - H40T mount 8T hydraulic-servo tool turret - H40TC mount C axes and 12T Powered tool turret - H40TY mount C axes and 12T Powered tool turret with 90°Y axes
Details:

Item	Specification	Unit	BL-H40T	BL-H40TC		BL-H40TY
Capacity	Chuck size	/	6''(8''*)
	Max. swing dia. over bed	mm	Φ400
	Max. swing dia. over saddle	mm	Φ300
	Max. turning length	mm	300(6'' chuck); 290(8'' chuck*)	260/240(BMT40,6''/8''* chuck); 250/235(VDI30*, 6''/8''* chuck)		240
	Max. turning dia.	mm	Φ310	Φ240(6'' chuck); Φ320(8'' chuck*);		Φ225
	Standard turning dia.	mm	Φ150(6'' chuck);Φ200(8'' chuck*)
Spindle	Spindle bore	mm	Φ56(Φ66*)
	Spindle end type	/	A2-5(A2-6*)
	Spindle speed	rpm	5000(4000*)
	Max. bar through dia.	mm	44(51*)
	Spindle motor power	kw	11
X/Z axes	X/Y/Z axes linear guideway type	/	BALL type/BALL type/ROLLER type
	X/Y/Z axes linear guideway width	mm	30/30/30
	X/Y/Z axes ball screw O.D.	mm	Φ32
	X/Y/Z axes ball screw pitch	mm	10
	X axes travel	mm	180	180		110
	Y axes travel	mm	/	/		70
	Z axes travel	mm	320	280		250
	X/Z axes rapid moving speed	m/min	30
	Y axes rapid moving speed	m/min	/	/		8
Tool turret	Tool turret type	/	8T/12T* Hydraulic-servo tool turret	12T BMT40 Powered tool turret; 12T VDI30 Powered tool turret*		12T BMT40 Powered tool turret with Y axes
	Toolshank size	mm	25×25, Φ40(SAUTER 8T); 20*20,Φ25/32(SAUTER 12T*); 25×25, Φ32(GSA 8T*)	20×20, Φ32		20×20, Φ32
	Live tool type		/	ER20(BMT40);ER25(VDI 30)		ER20(BMT40)
Tailstock	Tailstock quill taper	/	MT4#
	Tailstock quill dia./travel	mm	Φ70/70
Accuracy	Positioning accuracy(X/Z)	mm	0.008/1000
	Repeat positioning accuracy(X/Y/Z)	mm	≤0.005
Others	Overall size	mm	2180×1830×1710
	N.W.	kg	3100	3200	3300

* As option
Main parts list:

Item	Brand
Spindle unit	TAIWAN-ROYAL
Tool turret	TAIWAN-GSA/GERMANY-SAUTER/ TAIWAN-YULIN/SWIFT
Ball screw	TAIWAN-HIWIN C3 class
Ball screw bearing	GERMANY-FAG
Linear guideway	TAIWAN HIWIN P class
Lubrication system	TAIWAN-ISHAN
Rotary oil cylinder&chuck	TAIWAN-AUTOGRIP
Hydraulic parts	TAIWAN/JAPAN
Heat exchanger	Joint-venture
Main electricity parts	FRANCE-SCHNEIDER

Standard configuration:
-SIEMENS 808D ADVANCED CNC controller
-Hydraulic chuck
-Hydraulic tool turret
-Hydraulic tailstock
Optional configuration:
- SYNTEC/SIEMENS 828D/FANUC CNC controller
- C axes& powered tool turret
- Y axes
- Automatic chip conveyor
- Tool setting probe
