FEP Insulated Fluoride-Plastic High Temperature Wire

Product Description

Product Description

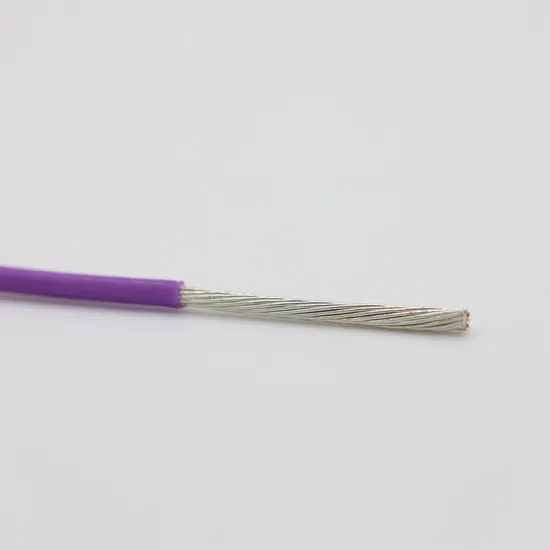

Product Name: Fluoride-Plastic Insulated High Temperature Wire
Conductor Type: Strand
Conductor Material: Tinned Copper/Copper
Insulation Material: ETFE(F40) / FEP(F46) / PFA
Rated Temperature: 180 ºC / 200ºC / 250 ºC
Product Coulour: BK/RD/BU/WH/PK/VT /GN/Customization
Normal AWG Size: AWG#10~AWG#26
Product Specifications

Core		Conductor			Insulation
Size [mm2]		No.	Diameter [mm]		Thickness [mm]		Diameter [mm]
0.35		19	0.15		0.20		1.15
0.35		19	0.15		0.20		1.30
0.50		19	0.18		0.20		1.30
0.50		19	0.18		0.30		1.50
0.50		19	0.18		0.22		1.60

Detailed Photos
Certifications
Product Environments
Packaging & Shipping
FAQ1) How can I get a sample for testing?
a.If we do have inventory and sample quantity is small, it's free.
b.If we do not have inventory or large quantity is required. you need to pay the produts and freight cost.
2)Do you Support Customized Product Specification?
Yes, Simply offer your products specification.A Drawing or Diagram will be helpful.
3) What is your Leading Time?
Normally, we finisish your order in 2~3 weeks, and 4~6 weeks in peak seasons.
4) What is your company's MOQ?
We do have MOQ requirements, but smally quantity also accepted for some products.

---
