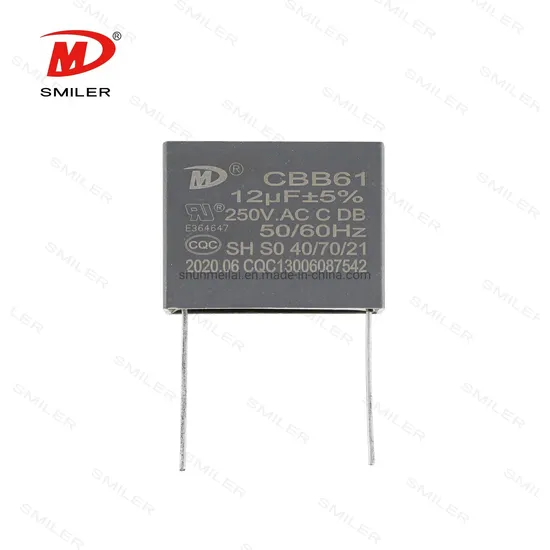

PCB Circuit Board Run Capacitor MKP Capacitor

Product Description

Product Details
Model Number	CBB61 with terminals, CBB61 with wires
Type	Polyester Film Capacitor, Polypropylene film capacitor
Place of Origin	Guangdong, China
Brand Name	SMILER
Supplier Type	Original manufacturer, ODM
Capacitance	0.1uf~100uf
Cross Reference	CBB61 cable type, CBB61 capacitor
Media Available	datasheet, Photo
Tolerance	+_5%(J),+_10%(K)
Package Type	plastic
Rated Voltage	100VAC~630VAC(50-60Hz)
Operating Temperature	-40°--85°
Brand	CBB61
Specification	wires or terminals type
Voltage - Rated	100VAC~630VAC(50-60Hz)
ESR (Equivalent Series Resistance)	4000(mΩ)
Applications	motor, fan, air conditioner etc.
Impedance	4000(mΩ)
Circuit Type	Bussed
Current - Leakage	CBB61-S3
Voltage - Breakdown	Not Applicable
Capacitance Range	0-100uf
Application	motor, fan, air conditioner etc.
Safety approvals	CQC/U-L/VDE/TUV/CE
Approval standard	GB/T3667,U-L810,EN60252-1
Climatic category	25/70/21,25/85/21
Rated voltage	250VAC~500VAC(50-60Hz)
Capacitance tolerance	+_5%(J),+_10%(K)
Between terminals	2*Un(VAC)/3s(CQC,VDE,TUV),1.5*Un(VAC)/3s(U/L)
Insulation Resistance(20)	between terminals and case>=5000/C(100VDC,3s)

Capacitance(uf)	250V	300V	400V	450V	500V
	L/W/H	L/W/H	L/W/H	L/W/H	L/W/H
0.8UF	32*10*20	32*10*20	32*10*20	32*11*22	36*11*22
1.0UF	32*10*20	32*11*22	32*11*22	36*10*20	36*13*23
1.2UF	32*10*20	32*11*22	36*10*20	36*11*22	37*13*24
1.5UF	36*10*20	36*11*22	36*11*22	37*13*24	37*15*27
2.5UF	36*10*20	36*13*23	36*13*23	38*15*25	38*17*28
3.0UF	36*11*22	37*13*24	38*15*25	38*17*28	38*19*31
3.5UF	36*11*22	38*15*25	38*17*28	38*18*29	47*19*31
4.0UF	36*13*23	37*15*27	38*17*28	38*19*31	47*19*33
5.0UF	37*13*24	38*17*28	47*17*28	47*19*33	47*25*35
6.0UF	38*15*25	38*18*29	48*19*31	47*20*35	47*27*37
8.0UF	38*17*28	47*17*31	47*20*35	47*25*35	47*30*43

Fan capacitors use high-pressure and high-temperature resistant materials. They are small in shape and flexible in installation. The lead-out can also be changed according to different application scenarios. With high safety and long service life, we can design dimensions and standards according to customer's use and installation requirements
CBB61 starting capacitor is a kind of machine which is suitable for starting and running of single-phase motor with 50HZ AC power supply, and also can speed control the motor. It is an important supporting part of electric fan, range hood, air conditioning fan, toaster and so on.

---
