Laser Machine Lenses CO2 Focus Lens 22.35*4 24.4*2 for Fiber Laser Engraver Cutting Engraving Machine

Product Description

Laser Machine Lenses CO2 Focus Lens 22.35*4 24.4*2 For Fiber Laser Engraver Cutting Engraving Machine
What is Fiber Laser Lens?
Fiber laser lenses are special optical components used in fiber laser systems, they are mainly used to control, focus, reflect or transmit the laser beam. These lenses are typically made of high-purity, low-absorption optical materials, such as fused quartz, calcium fluoride, or other special crystal materials, to ensure that the laser beam can maintain a high energy density and low loss as it passes through.
Fiber laser lenses are indispensable components in fiber lasers, they provide strong technical support for laser processing, communication, medical and scientific research and other fields by accurately controlling the transmission and reflection of the laser beam.

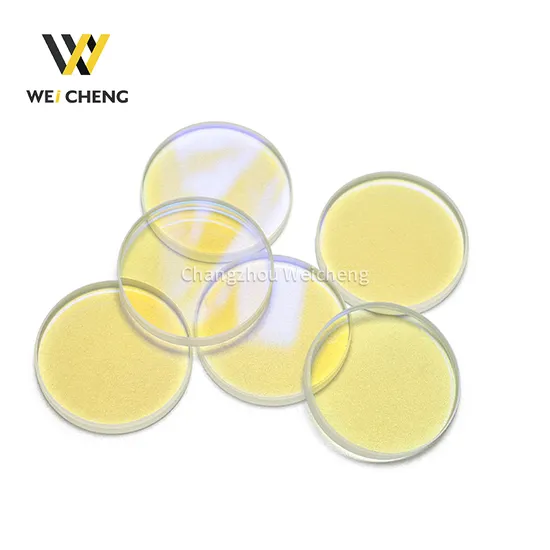

Detailed Photos
Specification(mm):
18*2/20*2/20*3/20*4/21.5*2/22.35*4/24.4*2/24.9*1.5/25.4*4
27*2/28*2/30*4/30*5/34*5/35*4/36*2/37*1.6/37*7/38.1*1.5
38*10/40*2/40*3/40*5/40*7/42*4/42*9/55X9
Plasma Power Source:Fiber Laser
High transmittance and reflectivity: Fiber laser lenses are made of high purity glass or crystal materials, with extremely high transmittance and reflectivity, which can effectively control the energy distribution and direction of the laser beam. The specific values of transmittance and reflectivity depend on the design of the lens and the choice of materials, and can usually meet the needs of fiber lasers for high-precision laser beam control.
High stability and durability: Fiber laser lenses can work stably in harsh environments such as high temperature, high humidity and high pressure, and are not susceptible to optical distortion caused by environmental factors. Its material has good corrosion resistance and wear resistance, and can maintain the stability of optical properties for a long time.
Versatility:
The retaining cap essentially holds all of the consumable parts of the torch together. As temperatures at this end of the machine are extremely high, it's not just the parts creating and focussing the arc that are worn down; the component holding them together also degrades over time.
At our company, we offer a wide range of laser lenses, including protective mirrors, focusing lenses, and collimating lenses. Our lenses are crafted with high-quality materials and precision manufacturing techniques to ensure optimal performance and durability. Experience enhanced laser performance and accuracy with our top-of-the-line laser lenses.

Common Specifications
Material	Quartz
Design Wavelength	1064±30mm
Transmittance	99.80%
Laser Damage Threshold (Reference Value)	pulse width 10ns
	repetition frequency 20kHz
Effective Diameter	85% of the outer Diameter
	coating φ10<=D

Commonly used protective lens specifications, application occasions
Coating color	Specifications	Quartz material	Applications	Applicable power
blue	18*2	JGS2	handheld welding machine	1.5KW
	18*2	JGS1(high power)	handheld welding machine	3KW
	20*2	JGS2	handheld welding machine	1.5KW
	20*2	JGS1(high power)	handheld welding machine	3KW
	20*3	JGS2	handheld welding machine	2KW
	20*4	JGS2	handheld welding machine	3KW
	21.5*2	JGS2	upper protective mirror
	22.35*4	JGS2	cutting	4KW
	24.9*1.5	JGS2	upper protective mirror
	25.4*4	JGS2	cutting	4KW
	25.4*5	JGS2	cutting	5KW
	26.5*5	JGS2	cutting	5KW
	28*4	JGS2	cutting	4KW
	28*4	JGS1(high power)	cutting	8KW
	29.7*4.7	JGS2	cutting	4KW
	30*1.5	JGS2	welding	1.5KW
	30*2	JGS2	welding	3KW
	30*4	JGS2	welding	6KW
	30*5	JGS2	cutting	5KW
	30*5	JGS1(high power)	cutting	10KW
	34*3	JGS2	cutting	3KW
	34*5	JGS2	cutting	5KW
	34*5	JGS1(high power)	cutting	12KW
	36*2	JGS2	welding	3KW
	36*3	JGS2	welding	4KW
	36*5	JGS2	cutting	5KW
	37*7	JGS2	cutting	6KW
	37*7	JGS1(high power)	cutting	15KW
	38.1*1.5	JGS2	upper protective mirror
	40*5	JGS2	cutting	5KW
	40*5	JGS1(high power)	cutting	12KW
	50*2	JGS2	welding	6KW
	50*4	JGS2	cladding	10KW
	50*5	JGS2	cladding	12KW
	55*1.5	JGS2	welding	6KW
	55*1.5	JGS1(high power)	welding	12KW
	134*3	JGS2	welding	6KW
	134*3	JGS1(high power)	welding	12KW
yellow	28*4	JGS2	cutting	4KW
	30*5	JGS2	cutting	5KW
	34*5	JGS2	cutting	5KW
	37*7	JGS2	cutting	6KW
	40*2	JGS2	welding	6KW
	40*5	JGS2	cutting	5KW
	50*2	JGS2	welding	6KW
	55*1.5	JGS2	welding	6KW

Application of fiber laser lens:
1.Laser processing:
In the process of laser cutting, laser drilling, laser etching and laser marking, fiber laser lenses are used to focus the laser beam
on a specific area to achieve high precision and high efficiency processing.
2.Laser printing:
Laser printing technology uses a laser beam to cut the image information into tiny points, and forms an image or text through a dot matrix arrangement. Fiber laser lenses are used in this process to control the direction and energy distribution of the laser beam, ensuring the accuracy of the print quality.
3.Laser measurement:
In the field of laser measurement, fiber laser lenses are used to control the direction and energy distribution of the laser beam to achieve accurate measurement of parameters such as distance, speed and shape of the object.
4.Optical communication:
In the field of optical communication, optical fiber transmission and laser modulation technology are used to achieve high-speed data transmission. Optical fiber laser lenses are used in optical fiber communication systems to control the direction and energy distribution of the laser beam to ensure the efficient transmission and reception of optical signals.

List of Focusing/Collimating Lens Models for Fiber Laser Cutting Machine
Diameter	focal length
19mm	80mm,120mm
20mm	80mm,120mm
20mm	50mm,80mm,120mm,150mm
24mm	120mm
24.7mm	75mm,125mm,150,mm
25mm	60mm,100mm,125mm
25.4mm	100mm,125mm,150,mm
26mm	75mm(Composite lenses),150mm
28mm	60mm,120mm,150mm,200mm
28mm	75mm,100mm,125mm,150mm
30mm	75mm,100mm,125mm,150mm,155mm,190.5mm,200mm
34mm	120mm,125mm,150mm,200mm
37mm	100mm,125mm,150mm,190mm,200mm
38.1mm	120mm,125mm,150mm,200mm
38.1mm	100mm,200mm
