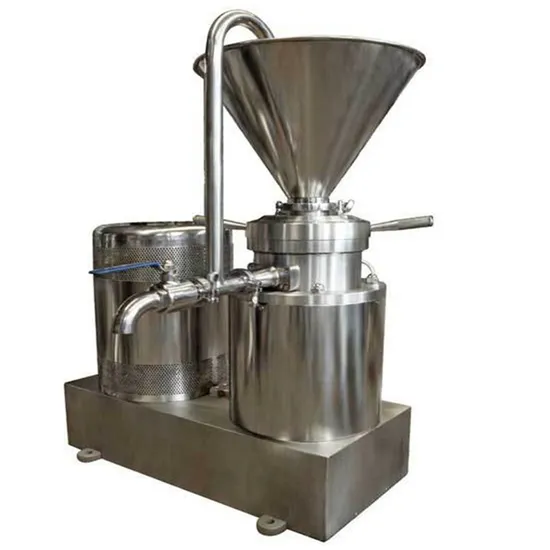

Small Colloid Mill 80kg for Pepper Sauce Bitumen (JMF80)

Product Description

Small Colloid Mill 80kg For Pepper Sauce Bitumen (JMF80 )
JM series colloid mill is new model equipment is that wet style particle processes, Be put into use emulsifying or homogeneity in all kinds of milk shape liquid, smash, widely use with food(Jam, juice, soymilk, dairy products, drink etc. )pharmacy (of all kinds, nutrient solution, Chinese patent drug, cream) chemical industry (toothpaste, cosmetics, detergent)Agents such as the grease, petroleum catalysator chemical industry pigment, dyestuff, lube) And industry such as milk selections, emulsification dynamite produces usage.
Main Application :
This machine is applied for wet material super fine crushing in trades such as pharmaceutical, foodstuff, chemical and others trades, suitable for emulsifying, mixing and crushing all kinds of semi-moist or emulsions materials. Its main technique parameters have reached the international advanced standard.
Working principle :
With its flexible and fixed mills with different geometric shapes rotating at high speed making the relative motion, this machine crushes materials by cutting, pulverizing, the pulverizing fineness can be adjusted by changing the rip between the upper and down mills. It can well reach the required effect of super-fine pulverizing fineness can be adjusted by changing the rip between the upper and down mills. It can well reach the required effect of supper-fine pulverizing at once. Featured with compact conformation, steady run, low noise, corrosion resistant, easy clean, convenient maintain etc, it is the most deal equipment for wet pulverizing in our nation .ced standard.
Range of Application :
Foodstuff industry:aloe, flower dust wall-broken, pineapple, gingili, ice cream, jam, syrup, soy, bean, grass nut milk, dairy produce, malted milk, essence, drinks, emulsified chicken bones, emulsified pigskin and other animal skins.
Chemical industry:
oil paint, dye, coloring matter, dope, lubrication, lubrication grease, diesel oil, petrol activator, emulsified bitumen, adhesive, scour, plastic, glass steel etc.
Life chemistry :
toothpaste, scour, shampoo, shoeshine, cosmetic, bath extractive, soap, sweet-smelling grease etc.
Pharmaceutical industry:
syrups, nutrition fluid, Chinese patent medicine, poultice, biology produce, fish liver oil, pollen, queen bee plasma, bacterin, ointments, liquid tonic taken orally, spasmolytic, pancreas and enzyme preparation, emulsion, herd drug etc.
Construction industry:
dopes including inside and outside walls dope, antisepsis waterproof dope, porcelain dope, colorful dope, pottery and porcelain enamel etc.
Other industry:
plastic industry, weave industry, paper making industry, biology chemical, environmental protection and economization on energy, coal floatation, universities, scientific research institutes etc.

TYPE		JMF80	JMF100	JMF120	JMF140
Emulsification degree(μm)		2	2	2	2
Adjustment range(mm)		1-0.01	1-0.01	1-0.01	1-0.01
Flux (KGS/H)		300-1000	500-2000	700-3000	1000-4000
MOTOR o r	Power (KW)	3	5.5	11	7.5
	Voltage(V)	380	380	380	380
	Revolve speed (r/min)	1700-3500	1700-3500	1700-3500	2900
Inlet diameter (inch)		2″	2 1/2″	2 1/2″	2 1/2″
Outlet diameter (inch)		1 1/2″	1 1/2″	1 1/2″	1 1/2″
Cold water pipe diameter (inch)		1/8″	1/4″	1/4″	1/4″
DIMENSION	length (mm)	830	880	880	880
	Width (mm)	410	460	460	460
	Height(mm)	860	1000	1000	1000
Weight (Kg)		130	200	275	320
