Best Price Long Reach Land and Water Excavator with Floating Tank Pontoon Tracks Mini River Amphibious Swamp Buggy with Backhoe and Dredging Pump for Sale

Product Description

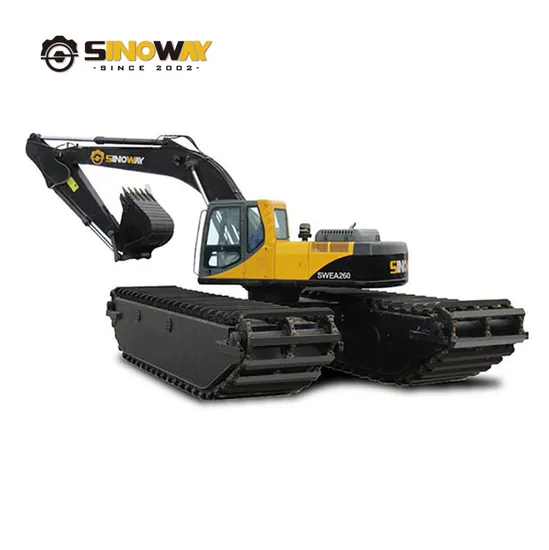

SINOWAY Swamp Excavator
Sinoway amphibious equipment is specially designed for river earth moving, waterway deepening, dredging applications,
offshore and mining exploration, swamp and delta works. With 20 years' experience, Sinoway has been became a front-runner
in amphibious equipment fields. Our unique hydraulic undercarriage, fitted with square hollow steel shoes and floating seal rollers,
gives our equipment exceptional mobility on waterway, wetland and soft terrain.
Our amphibious excavator is suitable for marsh earthmoving work. It is equipped with multiple watertight partitions in the bottom frame.
The ground pressure is better than the performance and hydraulic operation of ordinary hydraulic presses on loose tracks, and the belt
transmission capacity is stronger than that of ordinary hydraulic presses. With alloy steel material and workmanship, each model of Sinoway swamp excavator is a trusted piece of equipment that built to last.
Product Show
Machine Introduction
Specifications

Engine
Model	Cummins/Isuzu
Type	Six-cylinder,water-cooled turbocharged,mechanical injection
Rated power	106~125KW
Rated speed	2100rpm
Main Technical Specification
Operating weight	30000~42000Kg
Standard bucket capacity	0.5~1.1m³
Slewing speed 11rpm	11rpm
Stick digging force	110KN
Bucket digging force	150KN
Main Features
Tracked pontoon structure
Big torque travelling device
Big circular arc structure
High capacity of fuel tank
Main Applications
River/Beach earth moving
Swamp works
Dredging applications
Delta works
Waterway deepening
Hydraulic System
Main pump	KAWASAKI
Main valve	KAWASAKI
Motor	KAWASAKI
Hydraulic flow rate	2x235L/min
Hydraulic pressure	32MPa
Travelling System
Travelling speed	0~5.4km/h
Grade ability	65%
Ground pressure	0.0135MPa
No. of chains	3
Dimensions
Overall length	11200mm
Overall width	5350mm
Overall height	3900mm
Ground clearance	1192mm
Length of pontoon	8500~10200mm
Width of pontoon	1760mm
Height of pontoon	1700mm
Operating Scope
Stick length	3000mm
A: Max. cutting height	10980mm
B: Max. dumping height	8140mm
C: Max. digging depth	6940mm
D: Max. reach	10290mm
