US$1,000.00-5,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Type
Tool Grinding Machine
Automatic Grade
Automatic
Cylindrical Grinder Type
CNC Thread Grinder
Certification
CE, ISO 9001
Machine
CNC Thread Grinding Machine
Net Machine Size
4160X4600X1930
Transport Package
Plywood Case
Specification
4260x4780x2090
Product Description
Machine Picture
Machine Introduction
This high-precision CNC thread grinding machine is suitable for grinding ball screws, triangular threads, worms, and other shaft precision thread parts made of stainless steel, alloy steel, and non-ferrous metals. It can also be used for mass production of semi-finished and finished parts. The grinder machine has three axes (X, Z, and C). The grinding wheel dresser uses the XZ axis to dress thread forms such as triangles, trapezoids, circular arcs, and others.
Items
| Name
| QTY
| Model
| Brand
|
Controller system
| Cnc controller:
| 1
| 828D
| SIEMENS
|
| Drive and motor
|
| COMBI
| SIEMENS
|
Z axis
| motor
| 1
| 1FK7083-2AF71-1RG1
| SIEMENS
|
| Grating scale close-looped device
| 1
| LS487CML720
| HEIDENHAIN
|
| Guide
| 1
| SRG35LR2ZZCOE+1560LP
| Kaite
|
| Lead screw
| 1
| DIK4010-6RRGO+1017LC3
| THK
|
C axis
| motor
| 1
| DZM74A-180-49P5-1500/3000-LKT
| CTB
|
| Workpiece feedback spindle
| 1
| Circular magnetic grid
| HEIDENHAIN
|
X axis
| motor
| 1
| 1FK7083-2AF71-1RG1
| SIEMENS
|
| linear encoder
| 1
| S20P-470-5-A
| FAGE
|
| Guide rail
| 1
| SRG45LC2ZZCOE+1515LP-II
| HTPM
|
| Lead screw
| 1
| BIF4005-10RRG0+906LC3
| THK
|
A axis
| motor
| 1
| 1FK7063-2AF71-1RH1
| SIEMENS
|
| Rotary table
| 1
| SWM1510-03000
| ubright
|
Wheel spindle
| E-spindle
| 1
| 7.5KW
| ubright
|
| Spindle bearing
| 1
| P4
| NSK
|
| Grinding frequency converter
| 1
| SE3-043-11KW
| SHILIN
|
Trimming spindle
| E-SPINDLE
| 1
| 10000 rpm
| China
|
| frequency converter
| 1
| SE3-043-2.2KW
| Shilin
|
Machine Applications
Machine Features

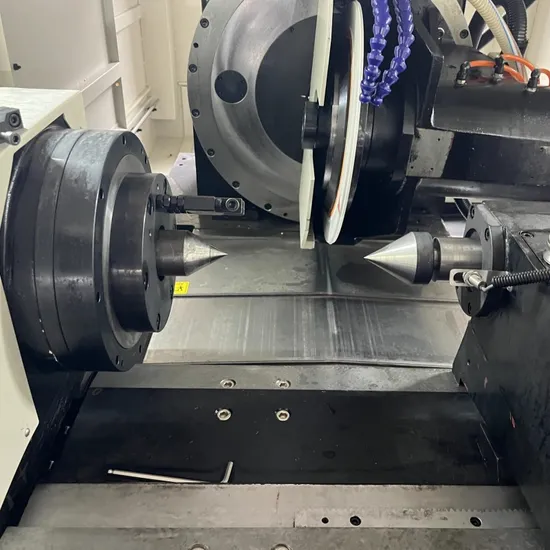

The XKS1503 CNC worm grinding machine features an automatic swing spiral angle A axis and a solid axis for wheel rotation. This allows for automatic adjustment of the grinding spiral angle, allowing for complete grinding of the worm tooth surface, including feed, grinding, cutting, correction, and spindle swing. The CNC grinding machine has a T-shaped casting bed and linear guide rail, resulting in excellent accuracy, good retention, shock resistance, ease of operation, maintenance, and dependable cooling. The grinding machine's X and Z axes are perpendicular and employs Heidehain grating for position feedback. The X axis length includes an A-axis column and deflection table to automatically manage spiral angle. The electric spindle motor directly drives the workpiece spindle, while the Heidehan circular encoder provides high-precision position feedback. The grinding wheel and diamond roller spindles are electric, powered by a built-in motor and cooled by a water cooler for steady and precise operation. Use the double-top chicken chuck clamping technique for machine tools. The equipment is entirely enclosed and automatically absorbs oil mist to maintain a clean working environment. A magnetic separator filters the grinding fluid, ensuring machine tool precision. The machine tool's electric cabinet uses air conditioning to maintain a steady temperature and keep system components within the allowable working range. The machine's power source is three-phase AC380V and requires a ground protection connection. Automatic interface for machine tools.
Machine Specifications
Items | unit | parameter |
Working ability | Grinding diameter | mm | φ6-100 |
| Distance between centers | mm | 320 |
| Grinding length | mm | 300 |
| High of center | mm | 185 |
| Spiral angle | ° | ±18° |
| pitch | mm | Any (spiral angle range) |
| Grindable thread pitch | mm | 1-99 |
Grinding wheel spindle | Grinding wheel size (outer diameter × thickness × inner diameter) | mm | φ500×10~20×φ305 |
| Minimum diameter of wheel | mm | φ400 |
| Spindle speed | min-1 | 50-3000 |
| Wheel motor power | Kw | 7.5KW |
| Radial run-out | mm | 0.002 |
| Axis run-out | mm | 0.002 |
Diamond rolls spindle | Required size of roller (outer diameter × inner diameter × thickness) | mm | φ80×φ25×30 |
| Spindle maxmum speed | min-1 | 10000 |
Workpiece spindle | Spindle speed | min-1 | 0~100 |
| Minimum angular unit | ° | 0.001 |
| Positional accuracy | ″ | 10 |
| Repeat positional accuracy | ″ | 6 |
Line axis | Machine stroke(X/Z) | mm | 350/500 |
| Minimum feed | mm | 0.0001 |
| Motor power | KW | 2.6 |
| Rapid speed | mm/min | 8000 |
| Positional accuracy | mm | 0.005 |
| Repeat positional accuracy | mm | 0.003 |
Cooling tank | Cooling tank volume | L | 600 |
| Cooling motor power | Kw | 3.5 |
| Cooling pump flow | m3/hour | 4.8 |
others | Machine weight | tons | 10 |
| Machine dimension(L/W/H) | mm | 3300/2950/2150 |
Machine Configuration
items | Name | QTY | model | brand |
1) | Main machine | 1 | SWM1503 | ubright |
2) | Electric control cabinet | 1 | SWM1503-05800 | ubright |
3) | Electric cabinet constant temperature air conditioning | 1 | EXZS48DH-DC2403C-90GY | DIAOTE |
4) | Cutting fluid filtration system | 1 | Magnetic separator | ubright |
5) | Automatic hydraulic system | 1 | 4L | HEGU |
6) | Oil mist collector | 1 | EP-90E | ubright |
7) | Spindle oil cooler | 1 | DO-8PTSφ380v50HZ | DIAOTE |
8) | tailstock | 1 | M3 | ubright |
9) | Tailstock jacking force indicator | 1 | | ubright |
10) | Head frame center | 1 | M5 | ubright |
11) | compressed air dryer | 1 | PRTIMAK D-13 | NIUMANTAOKE |
12) | wheel | 1 | 500X(10-20)X305 | ubright |
13) | Roll wheel | 1 | | ubright |
14) | fixture | 1 | | ubright |
15) | Toolbox | 1 | | ubright |
>>
