Universal Gear Turret Vertical Drilling and Milling Machine

Product Description

Product Description

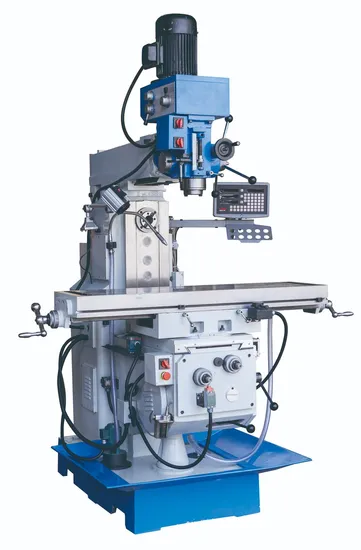

Universal gear turret vertical Milling Machine (Zx6350c)
Gear driven; X axis auto feed
This model pass CE standard.
ZX 6350C is a kind of economic-type drilling and milling machine, light and flexible, is used for mechanical maintenance, non-batch parts processing and components manufacturing.
The vertical head swivels to both sides (+-) 90
Standard accessories. 3-axis position indicator, 2 milling arbor (22, 27mm), collet set, drill chuck, mill chuck, reduction sleeve, Work light, coolant. Optional Accessories: DRO on X, Y, Z-- Clamping kit Universal divind head Rotary work table.

Specification MODEL	Unit	Technical parameters ZX6350C
Spindle taper		M. T. 4
Distance vertical spindle to table	mm	100-460
Distance horizontal spindle to table	mm	0-360
Distance spindle to column	mm	200-500
Spindle seeds range	r/min	(8 steps)115-1750(vertical); (12 steps)40-1300(horizontal)
Automatic Feed Series sleeve	mm	120(vertical)
Table size	mm	1120 × 280
Table travel	mm	600/250/360
Distance horizontal spindle to arm	mm	175
Table feeds range(x/y)	mm/min	12-370(8 steps)(max. 540)
T of table (no. /width/distance)	mm	3/14/63
Main motor	kw	0.85/1.5(vertical); 2.2(horizontal)
Motor of table power feed	w	370
Coolant pump motor	w	40
N. W/G. W.	kg	1250/1450
Overall dimension	mm	1660 × 1340 × 2130

---
