Basic Info.
Plasticizing Way
Screw Type
Certification
CE, ISO9001:2008
Injection Weight (G)
387 G
Screw Diameter (mm)
52 mm
Injection Rate (G/S)
161 G/S
Mold Height(mm)
160 - 500 mm
Ejector Stroke(mm)
140 mm
Product Description

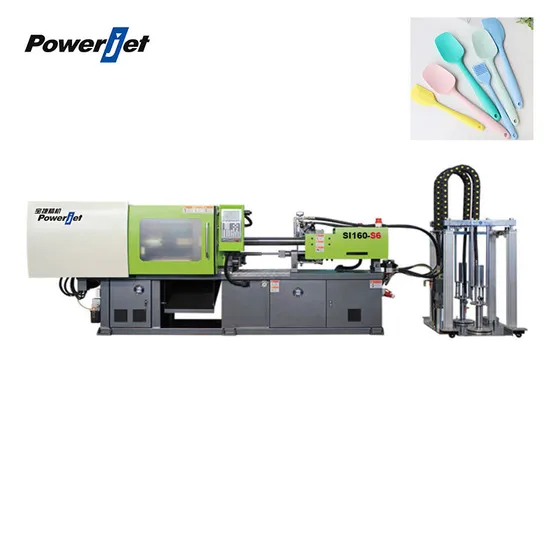

Powerjet SI Series silicone injection molding machine is suitable for baby supplies, medical, adult, automobile accessories, electronic accessories, stationery, such as diving equipment liquid silicone products.
FEATURES:
1:Optimized Clamping System - with high rigidity and high precision.
2:Short Response Time - Modular oil circuit design.
3:Automatic V-P Switch - High response and double cylinder injection system.
4:High Speed & Precise Microcomputer Controller - With large-screen display.
5:Suit For More Molds - Multi functional ejection for selection and inclusion of core pulling interface suitable for different kinds of mold.
6:More Accurate Measurement - Professional design of the feeding system.
Product Description
Company Information
| DESCRIPTION | UNIT | SI160-S6 |
CLAMPING UNIT | Clamping force | KN | 1600 |
Opening stroke | mm | 440 |
Max.datlight | mm | 940 |
Platen size | mm | 705*705 |
Space between bars | mm | 460*460 |
Max.mold height | mm | 500 |
Min.mold height | mm | 160 |
Ejector stroke | mm | 140 |
Ejector force | KN | 49 |
INJECTION UNIT | Screw diameter | mm | 52 |
Injection Pressure | MPa | 139 |
Shot volume | cm3 | 435 |
Screw stroke | mm | 205 |
POWER UNIT | Hydraulic system Pressure | MPa | 17.5 |
Pump motor power | KW | 11 |
Packaging & Shipping
Our Services
FAQ
Q1: Are you a manufacturer or trading company?
A1: We are a factory for plastic machines. Over 24 Years of Experience In Manufacturing Injection Molding Machines and Blow Molding Machines.
Q2: Is it possible to send an engineer to install and commission the machine, even train our workers?
A2: Yes, we can send our engineer to your factory for installation, commissioning, training. We have some engineers flying among different countries for after-sales service and technical support. Therefore, we need you to prepare an invitation letter for the visa before shipment. However, please be noted that all costs for visa, travel, the hotel should be paid in advance by customers.
Q3: If we buy your machines, is there any warranty?
A3: Yes, definitely. 12-months warranty after shipment for mechanical parts, hydraulic parts, electric components (The screw just has 6-months). We are responsible for broken parts within 12-months. We will supply those parts for free but the possible transportation cost should be paid by clients.
Please feel free to consult us to know more information. Thanks~
>>
