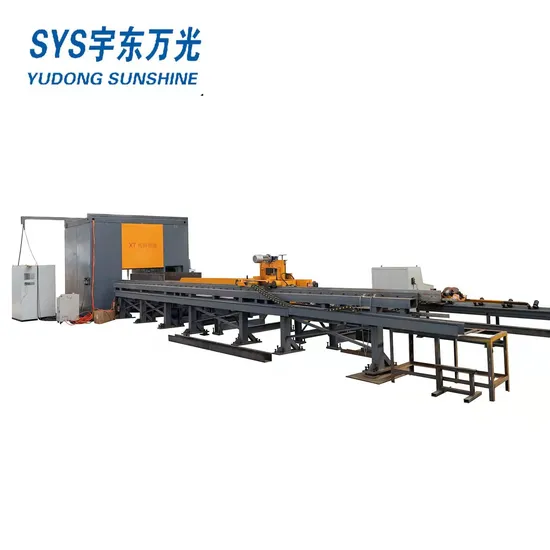

H Beam CNC Drilling Machine Marking Machine for Beam

Product Description

Introduction
The production line is mainly used in drilling and sawing of H beam, U beam which are applied in the fields, such as construction, bridge, boiler, stereo garage,offshore drilling platform and, specially, in steel structure which requires high precision and easy operation. This is machine is necessary for steel structure fabrication. Structure and configuration
The combination production line consists of drilling line and Band Saw, two pairs of infeed in and outfeed conveyors ,and one CNC control device and two side conveyors, along with electrical system, hydraulic system, air cooling and lubrication.
The combination line adopts Z form arrangement that the drilling line and the band saw are installed in parallel and connected by transverse conveyor. Each of the two infeed conveyors equips a NC feeder dolly with servo motor on the datum side and side push device to push the workpiece to the datum side; the drilling line equips an automatic transverse conveyor to upload workpiece; the outfeed conveyor equips roller to move the workpiece out of the process zone and to the transverse conveyor.
In the working process, the personal should lift the workpiece to the automatic transverse conveyor, after the workpiece is uploaded to the infeed conveyor from the transverse conveyor, the side push moves the workpiece to to the datum side, and the dolly moves the workpiece to the processing zone to drill, after the drilling, the roller moves the workpiece to the outfeed conveyor, the transverse conveyor which connects drilling line and band saw moves the workpiece from the outfeed of the drilling line to the infeed of the band saw to cut the workpiece, after the cutting the workpiece is downloaded to the outfeed, and the transverse conveyor of the band saw moves the workpiece out of the processing zone.
The process sequence is from drilling to cutting, the long workpiece which is meant to process into several pieces can be drilled integrally and then cut in to pieces. The transverse conveyor between two lines in Z form arrangement can can adjust the process speed. The Z form arrange let these two lines work both together and separately, when one of them is in maintaining the another line can work independently.
Configuration
The combination line line includes dolly, dolly track, feed conveyor, feeding line, drilling line, band saw, electrical control system, hydraulic system, air cooling system, lubrication and etc.
Terms to explain
1. Dolly: driven by servo motor with gear box via rack and pinion, the workpiece is clamped by the jaw in order to lengthwise infeed and positioning.
2. Dolly track: bear dolly to infeed, this track can by customized.
3. Feed conveyor: consist of infeed conveyor and outfeed conveyor to bear and output the workpiece.
4. Feeding line: this transverse line consists of four in feed frames to automatically upload workpiece.
5. drilling line: 3D drilling machine has three drilling heads with spindle. The side drilling head has vertical positioning, and vertical drilling head has radial positioning.
6. Band saw: equip two-pillar-closed structure, linear guide, possess high stiffness and efficiency.
7. Hydraulic system: equip with oil tank, low pressure pump set, cooler, main valve block and other control valve unit.
8. Electrical control system: with PLC and computer, two sets of it.
9. Hydraulic system:control hydraulic movements and support hydraulic power.
10. Air cooling system:adopt mist cooling for drilling line, band saw adopts water cooling.
11. Lubrication: VERSA lubricating system, support linear guide, guide screw, bearing and etc., some other parts of this line apply artificial lubricating.

Model	SWZ1508
Spindle	Spindle Axis		3
	Spindle taper		BT40
	Spindle rotation speed(r/min) Stepless speed regulation		200~3000
	Max. hole diameter(mm)	Fixed Side, Moving Side	Φ40(High Speed)
		Intermediate Unit
	3 Positioning CNC axis moving speed	m/min	0-10m/min
	3 feed CNC axis moving speed	m/min	0-5m/min
Motor power	Spindle motor power (KW)		3*11
	Servo motor power of 3 Pcs feeding Axis(KW)		3*2
	Servo motor power of 3 Positioning Axis (KW)		3*1.5
Feeding Trolley	Feeding trolley servo motor(KW)		5
	Maximum feeding speed(m/min)		20m/min
	Maximum feeding weight(Tonnes)		10T
Control system	CNC System		Japan YOKOGAWA PLC
	CNC Axis Quantity		7
Hydraulic system	Max. Hydraulic Pressure (MPa)		7.5
	Motor power(KW)		5.5
Cooling system	No. of Nozzle		3
	Pressure of compressed air (Mpa)		≥0.5
	Cooling way		Internal Cooling & External Cooling
Tool Magazine(optional)	Tool Magazine Quantity		3
	Tools quantity for each Magazine		4 Pieces
Marking unit(optional)	No. of Characters		36 Characters
	Characters Size		Φ10 mm
	Imprinting Depth		0.8~1.5mm
	Position servo motor(KW)		0.75
Working environment	Working power		Three phase four wire system 380±10%V, 50HZ
	Control power		220±10%V 50HZ
	Operate power		24V DC
	Working temperature		0ºC ~ 40ºC
	Humidity of environment		≤75%

Inner cooling (inside of drilling bits) and outside cooling system,When use the high speed drill bits, then use the inside cooling, when use the normal twist drill, use the outside cooling.

NC carriage feeding unit with rolling loading conveyor,The feeding carriage used for automatic feeding workpieces, it controlled by PLC, precision is very high.

---
