Mining Machine Anti-Rain/ Dust/ Wind Belt Conveyor Cover Hood

Product Description

About Us Henan Yuanben Intelligent Technology Co., Ltd. (hereinafter referred to as Yuanben) is a specialized manufacturer that focuses on designing and manufacturing intelligent vibrating screening equipment. The company is committed to the processing, production, research& development and design of new intelligent vibrating screen. Yuanben is located in the national center city, Zhengzhou, it owns more than 20 technical engineers, and cooperates deeply all along with Henan Pingyuan Mining Machinery Co., Ltd. which has years of dedicated production experience, in addition, Yuanben has its own processing research and development base.
''Build industry with wisdom, create value with wisdom'', under the promotion of "Internet+" concept, Yuanben will deeply integrate ''intelligence + digitalization'' to build an intelligent workshop and realize the intelligence of overall process. While strengthening its own equipment automation intelligence, driving the transformation and upgrading of screening industry, the industry intelligent development should be also jointly promoted.
Fixed Belt Conveyor Hood,Conveyor Belt Cover Get a price at once! Product Description
Belt Conveyor Cover is well known as conveyor belt hood. It is used for protecting transported material ,conveyor belting, idlers and structure. They effectively improve personnel safety, reduce loss of material to wind and stop grime and rain from damaging the idlers and belt.
1. Full hood (180 belt coverage): provides the maximum safety.
2. 3/4 hood (135 belt coverage): same as full hood, but with only one side opening
3. Partial hood: same as 3/4 hood, with opening from both sides
Advantage
Produced from galvanized sheet steel corrugated section 18/76 for all belt conveyors but normally used for belt widths of 400 mm upwards. The steel covers for belt conveyors are produced from corrugated sheet to NFA 46322 norm and have the following advantages:
- Self supporting
- Non flammable
- Resistant to breaking
- Environmental
- Supporting structures are not necessary
- Maintenance free
- Very strong
- Easy to handle
- Economic
Application

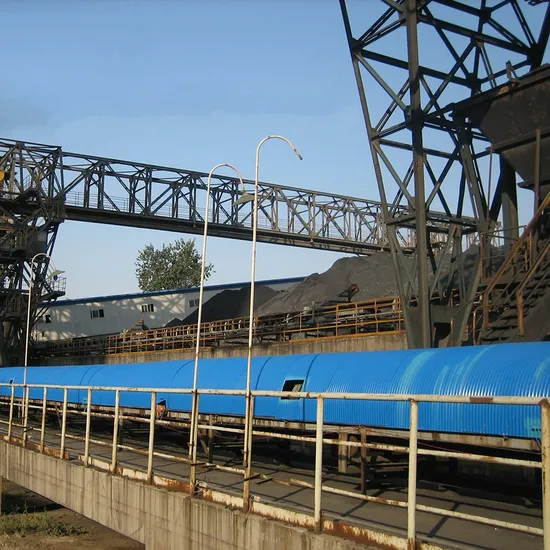

YD Conveyor Covers is well known as conveyor belt hood and used to protect transported material and conveyor belting, idlers and structure. Effectively they improve personnel safety; reduce loss of material to wind and stop grime and rain from damaging the idlers and belt.
YD Conveyor Covers is mostly used in power plant, cement factory, iron and steel factory, chemical factory, coal, port, jetty, mining and other enterprise. Our company provides fixed-closed type and open type. The color of the rain covers are mainly in blue, grey and white, and red (depend on client's need).

Why covering belt conveyors ?
1. to protect the conveyed material,
2. to protect the environment:
- against dust
- against noise
- and for a better integration in the landscape
3. for the operators' safety,
4. for the protection of the belt:
- against the sun and bad weather
- and for a longer life
5. for the protection of the materials:
- with reduction of maintenance to the structures
- to avoid loss of materials and productivity due to the wind
- to avoid a deposit of the rain-water on the belt
- to assure the efficiency of the industrial constructions linked to the belt. Get a price at once! Feathers

Proven strength, adaptability and low maintenance.

Lightweight elements simplify assembly, dismantling and re-use.

Zinc coating of the sections and support bands combine to provide long service life.

Designed to provide easy access for belt and idler repair.

Effective length 900mm; can be overlap joint.

Thickess 0.5~1mm.

Fixed type, whole open-close type, particle open -close type, deviation conveyor hood etc.

Product Parameters

Model	Belt Width (mm)	Opening width	Height	Radius
YDT5	500	846	573	423
YDT6	650	996	648	498
YDT8	800	1196	748	598
YDT10	1000	1396	848	698
YDT12	1200	1606	953	803
YDT14	1400	1856	1078	928
YDT16	1600	2056	1173	1028
YDT18	1800	2300	1280	1150
YDT20	2000	2546	1423	1273

Get a price at once!

---
