Efficient Cotton Picker Machine with Innovative Bale Wrapping Capability

Product Description

	project	unit	design value
1	Model name	/	A 4 MZD-6 cotton harvest baler
2	Structural type	/	self-propelled
3	Brake type	/	Hydraulic disk type
4	Matching power rating power	kW	570
5	Matching power rated speed	r/min	1900
6	Pure working hour productivity	hm2	2
7	Operating state and external dimensions (length, width and height)	mm	10000×5600×5300
8	Transportation state and external dimensions (length, width and height)	mm	12000×5600×4500
9	Complete machine quality	kg	33000
10	Cab type	/	conventional type
11	Number of jobs	Line	6
12	Cotton-picking head structure type	/	Horizontal ingot extraction
13	Quantity of cotton drum	individual	12
14	Number of pick tubes on each drum	individual	The first 16 and the last 12
15	Number of ingots on each spindle base tube	individual	20
16	Number of ingots on each cotton picking head	individual	560
17	Number of cotton displacements	individual	240
18	Fan type	/	centrifugal
19	Fan flow	m3/h	7860
20	Wind pressure (full pressure)	Pa	5820
21	Fan speed	r/min	4100
22	Adapt to homework distance	mm	760
23	Pick the minimum cotton bell height	mm	180
24	Cotton box compaction stirred dragon quantity	individual	1
25	Maximum volume of the cotton storage box	m3	9
26	Cotton unloading method	/	Base cotton frame hydraulic tilt flip
27	Front wheel specifications	/	520/85R42
28	Rear wheel specifications	/	580/80R34
29	front track	mm	Inside 2250, outside 3880
30	Rear wheel distance	mm	2280
31	wheel base	mm	4320
32	Widwidth of packing chamber a	mm	2350

Company profile
Hebei Dingguagua Machinery Manufacturing Co. , Ltd. has entered the field of agricultural machinery R & D and manufacturing since 2004. After more than 20 years of hard work and development, it has developed into a high-tech company with high reputation and influence in the field of agricultural machinery in China, specializing in the R & D, manufacturing, sales and after-sales of agricultural machinery.
The company has a strong technical R & D team, and has more than 30 Chinese national invention patents, mainly produces a series of cotton field machinery, including cotton picking machine, packing machine, etc. The series of green fodder harvesters, mainly including green fodder harvesters suitable for harvesting a variety of silage crops, big round baling machines, etc. Sales service network covers China's entire agricultural production area, and products exported to Thailand, Vietnam, the Philippines and other Southeast Asia countries, as well as Turkey and other West Asia countries or regions
Product advantage

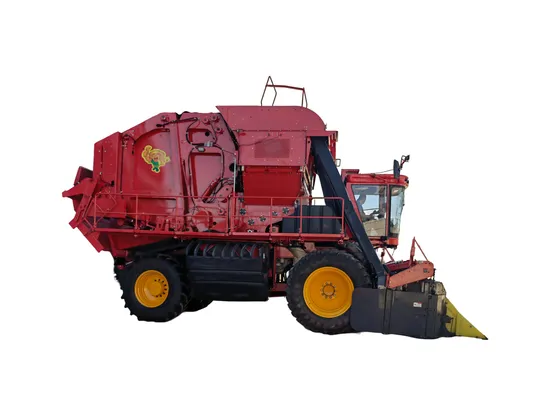

4MZD-6 Cotton harvesting baler
★ Equipped with 770 HP energy-saving diesel engine.
★ The maximum cotton bag diameter of 2 meters, width of 2.35 meters, the maximum weight of 2.2 tons
★ Large LCD display, equipment parameters at a glance, intelligent control system includes maintenance mode, transportation mode, self-check mode, one-click deformation mode.
★ Double fan large structure, netherworld to receive large processing capacity, can meet the main production, high humidity harvesting needs
★ Packaging system conveyor belt (green belt), packaging belt (black belt) and other packaging key parts, wear parts market universality, low maintenance cost.
★ The hydraulic system adopts the golden combination of Linde hydraulic food and motor, which is reliable and efficient, the walking speed range is large, the packing system is constant pressure and constant torsion, and the compaction inside and outside of the cotton bag is consistent.
★ The packaging system adopts the design of a film bin, which can load up to 4 bundles of packaging film to meet the long-term continuous packaging operation, and uses a high-sensitivity sensor, the tightness of each cotton package film is consistent, not easy to loose.
★ Patented hydraulic lift folding expansion double platform.
Q&A
Q1: What's your lead and delivery time?
A1: Usually machines should be prepared well within 30 days, including Sundays when deposit isconfirmed. Delivery time should depend on customers' demands for the delivery way.
Q2: How is your warranty?
A2: Warranty period is 12 (Twelve) months from the startup on site.
Q3: How could l do ifl meet some troubles on operation?
A3. We will let our engineer contact with you to solve it on line. lf necessary, we can send engineers andtranslator to vour factory to train your tech staffs.

---
