US$560,000.00-580,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Model NO.
HY10000L-3Layers
Making Method of Parison
Extrusion-Blow Molding
Computerized
Computerized
Certification
CE, ISO9001:2008, QS, GMP
After-sales Service
1 Year
Screw Diameter
130/150/130mm
Extruder Motor
132/160/132kw
Plasticizing Capacity
1000kg/H
Accumulator Capacity
350kg
Die Head Heating Power
110kw
Maximum Air Pressure
0.8MPa
Main Operation Panel
Touch Screen 12"
Thickness Control Points
200 Points
Thickness Controller
Moog
Transport Package
Be Disassembled Into Many Parts for Container Tran
Production Capacity
2-7PCS/H
Product Description

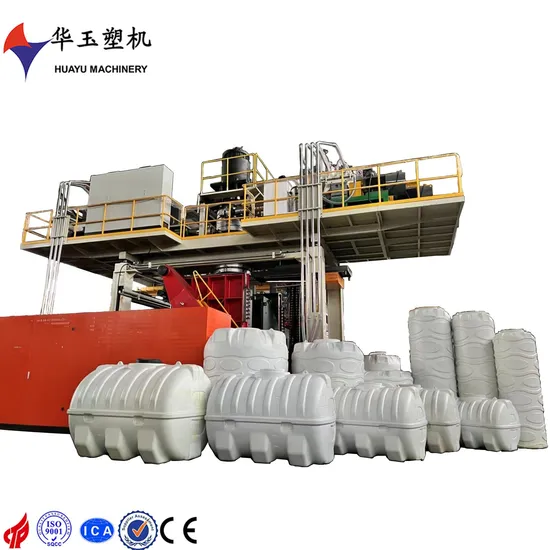

10000L 3 layers blow moulding machine, mainly used for produce water storage tanks, capacity range 3000~10000L. Otherwise can be designed for producing non-standard products according to customer's request.
Servo motor ,
IKV screw barrel ,
Diehead seals use hard seal
Moog 200 points
Touch screen 12''
New type of robot arm
Made in China & Made by Weifang Huayu Plastic Machinery Co.,Ltd.
The seller transports the goods to Qingdao Port, China after inspection of machine.
All the inspection work should be performed as the technical configurations and parameters which are stipulated in the contract.
The machine will be disassembled into many parts for container transportation. The seller is responsible for packing and fixing all these parts in container well according to their own experience.
The seller's machine should be passed the ISO9001, CE certification.
>>
