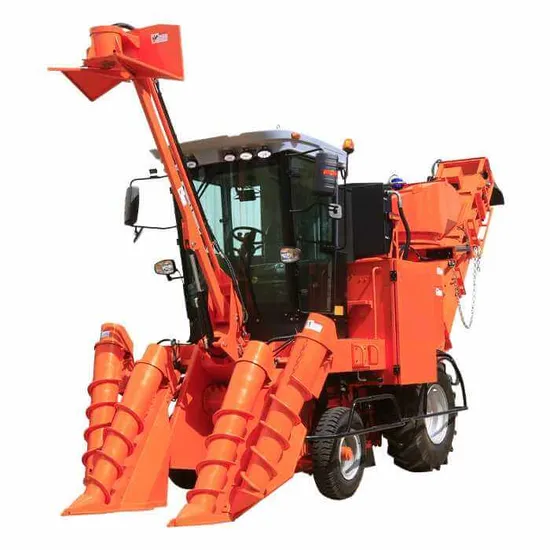

High Discharge Efficiency Sugarcane Harvester

Product Description

No.	Item	Unit	Product Specifications
1	Structure type		Self-propelled Cutting
2	Model Number		4SW-130
3	Number of rows harvested		1
4	Adapt line spacing	m	0.8-1.2
5	Supporting power production enterprises	/	YTO
6	Supporting power model name	/	LR6M3LR23/1030 Diesel Engine
7	Matching power rated power	kW	96/103
8	Matching power rated speed	r/min	2300
9	Maximum driving speed	km/h	30
10	Pure work hour productivity	hm²/h	≥0.15
11	Rated feed volume	kg/s	≥3.5
12	Machine quality	kg	6670
13	Walking style		Wheeled
14	transfer method		Hydraulic
15	External dimensions	mm	Max:8800×2300×5070
			Min:7500×2300×3660
16	Minimum ground clearance	mm	246
17	Cutting device adjustment range	mm	325
18	Cutting device type	/	Single disc cutter
19	Cutting device type	/	Double disc cutter
20	Cutting device type	/	Flat roller cutter
21	Sugarcane collection method	/	Sugarcane hopper
22	Sugarcane unloading method	/	High position dump
23	Wheelbase	mm	2425
24	Front wheel track	mm	1560
25	Rear wheel track	mm	1510
26	Front wheel specifications	/	10.5/65-16
27	Rear wheel specifications	/	14.9-28
28	Air separation device(1)Type	/	Axial-flow fans
29	Air separation device(1)transfer method	/	Hydraulic
30	fan(1)Rotation diameter	mm	850
31	fan(1)Rotating speed	r/min	1500
32	fan(1)Number of blades	piece	3

The sugarcane cutter blades are designed for efficient and precise cutting, featuring durable materials to withstand harsh field conditions. They are optimized for a cutting width suitable for domestic small plots, typically 0.8-1.2 meters row spacing. The blades are part of a comprehensive cutting mechanism that includes a cane lifting device, ensuring clean cuts and minimal damage to the stalks. Utilizing advanced blade geometry and sharpness, they deliver high performance and reliability, making them ideal for use in the original self-propelled high discharge technology.
The sugarcane harvester features 10.5/65-16 front wheels and 14.9-28 rear wheels, providing stability and traction in diverse field conditions. These wheels contribute to the machine's overall efficiency, allowing it to navigate through various terrains with ease. Their specifications ensure durability and resistance against wear, supporting the harvester's maximum driving speed of 30 km/h. The 2425mm wheelbase and 1560mm front wheel track enhance maneuverability, while the 1510mm rear wheel track provides balance and stability during operation.
With our sugarcane harvester, harvested sugarcane is collected through the hopper and then transported to large trucks via a loading vehicle. Previously, trucks had to parallelly run alongside the harvester, requiring wide roads. Now, our harvester doesn't need to be accompanied by trucks, making it ideal for small to medium-sized sugarcane fields.
The sugarcane harvester's electronic display panel offers real-time operational data, including engine status, speed, and fuel levels. Its intuitive interface simplifies machine control, enabling operators to adjust settings for optimal performance. The screen displays warnings and maintenance reminders, ensuring timely service. Robust construction ensures reliability in field conditions.
The sugarcane harvester is powered by a YTO LR6M3LR23/1030 diesel engine, delivering rated power of 96/103 kW at 2300 r/min. The machine operates with a maximum driving speed of 30 km/h, achieving a pure work hour productivity of ≥0.15 hm²/h. The 4SW-130 model utilizes a hydrostatic plus mechanical two-speed drive, ensuring efficient energy transmission throughout the system. The hydraulic transfer method optimizes power distribution, improving overall performance and reducing energy loss. The LR6M3LR23/1030 engine supports the harvester's cutting, lifting, and unloading functions, guaranteeing consistent output and reliability.Introducing WUBOTA's state-of-the-art sugarcane harvester, designed for efficient and reliable performance. Our 4SW-130 model boasts a YTO LR6M3LR23/1030 diesel engine, delivering 96/103kW at 2300r/min. With a maximum driving speed of 30km/h, it achieves a pure work hour productivity of ≥0.15hm²/h. The hydrostatic plus mechanical two-speed drive ensures smooth operation, while the hydraulic transfer method maximizes efficiency. The sugarcane hopper collects and discharges cane via a high position dump, increasing productivity. Trust WUBOTA for top-notch sugarcane harvesting solutions.

---
