Conventional Photoelectric Smoke Heat Detector for Fire Alarm System

Product Description

Introduction

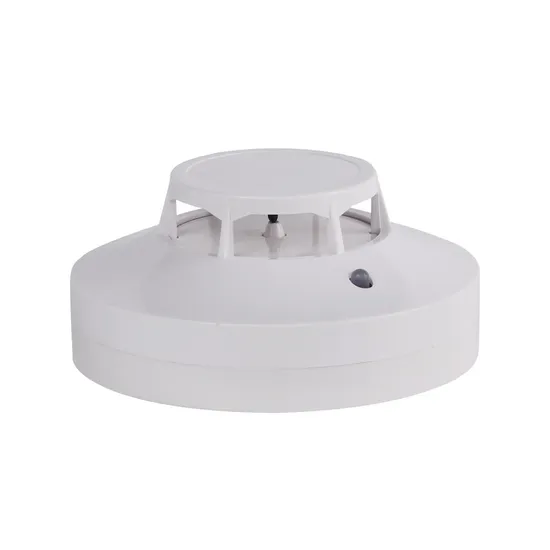

CA3303 thermal fire detector is designed with ultra-thin structure and two-wire system without polarity input. High quality thermistor, microprocessor detection and data processing, strong anti-interference, low power consumption, safe and reliable use, is suitable for a variety of places of switch temperature detector. The detector can effectively detect the temperature change in the field. When the temperature reaches the pre-determined threshold, the detector responds to the fire alarm signal and lights its own fire confirmation lamp (red), which can be used to control the shutter door and other equipment.
Parameters

Product Name	12/24V Conventional Heat Detector	Loop Bus wired	Non-polarity 2 wired.
Nominal Votage	DC 24V	Work Voltage	DC12V~DC24V
Monitor Current	≤50uA	Alarm Current	≤15mA
Led Indicator	Alarm Status: Red led always light on	Operating Environment	Temperature -10°C~+50°C Humidity ≤95%.
Dimensions	φ100mm×52mm	Product standard	CCCF/CE

Product Range
4-wire smoke detectors with relay output.
2 wire smoke and heat detectors for switch fire sensor
Standalone smoke detectors and combustible gas detector
Explosion-proof product for fire alarm system
Addressable fire alarm system
Wireless alarm system
Electrical fire monitor system
Extinguishing control system
Fire door monitor system
Fire extinguishing Water cannon System
Service
1. OEM &ODM service.
2. Provide technical support and after-sale service.
3. 1 year warranty.
4. Normally 15 working days lead time.
5. Welcome sample order.

---
