Kc212D Electric Yarn Winder Sewing Thread Cone Winding Machine

Product Description

Product Description

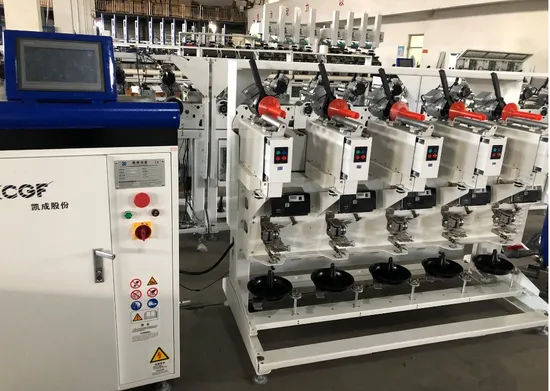

KC212D Semi-Automatic Yarn Winding Machine
Intelligent Yarn Winder For Y-tube (King-tube)
Suitable for winding large packaged embroidery thread & sewing thread on A tube, Y tube and cylindrical tube
Features
A. Electronic winding controls
Adjust the stroke length from 1' to 10', winding density and taper angle;
B. When processing yarns on Y tubes the package formation program is following the tube shape;
C. Winding contact pressure can be set to be automatically detected to intelligently ensure perfect winding;
D. intelligent oil level control,real-time accurate oil temperature control, oil stoppage detection with automatic shutdown, perfect guarantee of oil level on yarn;
E. Intelligent weight assessment, length measurement and counting functions. Product Parameters

Traverse length	85~250mm (It can be changed according to actual situation)
Take-up tubes	King-tube, A-tube (tapered tube), Y-tube(horn tube)
Package shape	straight edge or incline edge shape (the angle can be adjustable)
Rated power	300W/Spindle
Yarn count	up to 3300D

Spindle gauge: 420mm;
Type of winding: precision cross winding;
Linear speed: up to 1200m/min ( depend on the process parameters );
Machine structure: Single side, single layer, 5 spindles per section (It can be changed according to actual situation);
It is designed as the same winding technology as European Brands but was developed and programmed by ourselves. The functions of our machines are identical with European Brands and our technology ensures well controlled winding. And some of our spare parts is compatible to European Brands, such as guiding motor, sensor and angle transducer.
After Sales Service
For demo machine set:
5 spindles/set+ Independent Machine headstock
Wooden case packing;
*provide the spare parts;
*Gurantee: one year;
*Provide remote installation or door-to-door installation service;
*Provide after sales service;
*Welcome to visit our factory; Certifications
ISO9001; ISO14001; ISO45001; CE;
Company Profile
Zhejiang Kaicheng lntelligent Machinery Co., Ltd. is a national high-tech enterprise dedicated to manufacturing intelligent winders and twisters, and also researching, developing automation control software for high-end textile machinery. Kaicheng insists on technological innovation as its core competitiveness of the enterprise. We focus on researches in the field of twisting and winding technology, and keep up with international level especially some famous brands from Europe. We are the best choice and replacement for European brands. Kaicheng products are being sold not only in China but are exported to Southeast Asia, West Asia and North-America, Central and South America, as well as Europe. Kaicheng has set up full set of advanced processing equipment and technology research centers to take its research activities. Moreover, Kaicheng has established long-term cooperation relations with Donghua University, Wuhan Textile University and other universities; "Modern Textile Machinery Research Institute" and "Postgraduate Training Base" was co-established by Zhejiang Kaicheng Intelligent Machinery Co., Ltd.& Zhejiang Sci-tech University in year of 2020.

---
