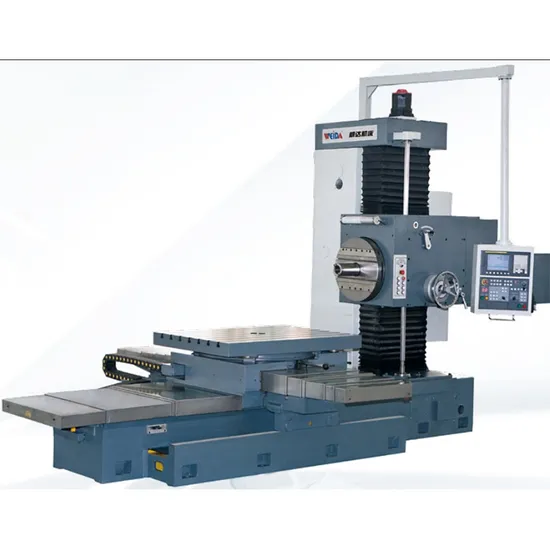

Tpk611c CNC Boring and Milling Machine

Product Description

Product Description
- This series of machine adopts the layout form of single column and side hanging box, and the table adopts the structure form of four-point positioning and manual rotation
-TheX,Y,and Z axis arecontrolled by the CNC controller and can realize three axis linkage movement.The boring spindle feed can becontrolled by servo motor(optional), which can realize the automatic expansion and contraction of the boring spindle
-The X,Y and Z axes adopt rectangular sliding guide way and PTFE plastic coating technology, which has good shock absorption andhigh precision-The spindle box with balancing weight. The spindle and the face plate are controlled by AC servo motor
Standard:
- Fanuc Oi MF CNC controller
- Manual rotating table
Optional:
Product Parameters

Main specifications	unit	TPK611C
Spindle diameter	mm	φ110
Z-axis Longitudinal travel of table	mm	1350
X-axis Transverse travel of table	mm	1250
Y-axis Headstock vertical travel	mm	900
W-axis axial travel	mm	550
Max. boring diameter	mm	φ240
Max. drilling diameter	mm	φ50
Max. allowable torque on spindle	N.m	1100
Table size	mm	1320X1010
Max.table load	kg	2500
Distance from spindle nose to table surface	mm	5-905
Taper of spindle		BT50
Max. machining diameter of facing head	mm	630
Feeding range	mm/min	0.2-330
Rapid feed speed(X/Y/Z)	mm/min	5000
Spindle speed range	rpm	12-1100
Facing head speed range	rpm	4-130
Feed speed range	mm/min	0.5-1000
Spindle motor power	kW	11/15
Positioning accuracy	mm	0.02/500
Repeat positioning accuracy	mm	0.014/500
Overall dimension	mm	5375X2995X3035
Machine weigh t	kg	12300

Detailed Photos

---
