Four Axis Automatic High Precision Metal Slant Bed Linear Rail Machine

Product Description

Four Axis Automatic High Precision Metal Slant Bed Linear Rail Machine

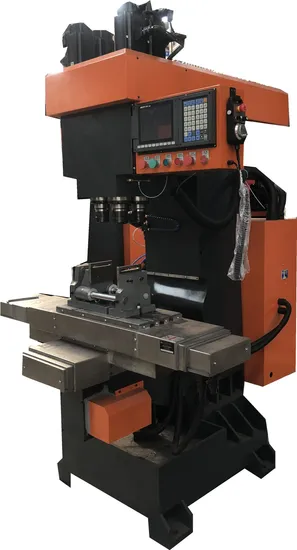

I.Equipment description and picturesZSK 4150X4 vertical four-axis processing machine is suitable for the production and processing of large and medium batch doors. The appearance of the machine is smooth and generous, the operation is simple and intuitive, and the adjustment is convenient. The CNC control is adopted, the degree of automation is higher, the reliability is good, the labor intensity of the operator is reduced, and the operation and management of one person and multiple machines can be realized.
II.Technical Paramete

No.	Category	Specification	Remark
1	Max stroke of X axis mm	400
2	Max stroke of Y axis mm	280
3	Max stroke of Z axis mm	250
4	Max Stroke of Z1/Z2/Z3/Z4	120
5	Z1/Z2/Z3 spindle space mm	120
6	Fastest moving speed of X axi m/min	30
7	Distance between spindle end surface and worktable surface mm	300/550
8	Max moving distance of lifting platform mm	250
9	Distance between spindle axis and bed guide surface mm	330
10	Number of spindle	4 axis
11	Max drilling dia	50mm	copper
12	Max tapping dia	M50*3
13	Spindle tool holder type	BT 40	Standard
14	Spindle parameter	Spindle revolution10-3000/min	Speed adjustable
15	Working accuracy	Hole positioning accuracy 0.008/ Repeat positioning accuracy 0.008
16	Working steam source pressure	5-6 kg/c
17	Dimension	1700mm*1800*2250mm
18	Weight	2500kg
19	Power ability	Total power 10KW
20	CNC system	Hust
21	Hydraulic system	Phoenix
22	Chip removal system	Inclined chip removal
23	Ball screw rod Linear slide	Taiwan Hiwin
24	Servo motor	Hust
25	Spindle servo	Beijing CTB
26	AC Contactor	Siemens
27	Relay	Omron
28	Hydraulic vise

III.Production workshopIV.Package and Loading
V.Certificate:
our service:
1. Reply your inquiry in 24 working hours.
2. Experienced staffs answer all your questions in fluent English.
3. Customized design is available. UEM&UBM are welcomed.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
5. Special discount and protection of sales are provided to our distributor.
6. Professional factory : We are manufacturer, specializing in producing all kinds of machinery for more than 20 years, competitive with good quantity.
7.Sample: We can send out sample for test in one week if the order quantity is big enough. But the shipment charges is usually paid by your side, the charges will be rebounded when we have formal order.
8.As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature. Welcome to contact us or visit our company.
our company:
Quanzhou Yueli Automation Equipment Co., Ltd was founded in 2013, which covers an area of 3000 square meters. The company is located at the China Plumb Town--Nanan, Fujian. It is a production enterprise lead by drilling tapping compound machine, drilling tapping centers and drilling tapping milling process center. The company is committed to serving various of industries such as sanitary ware, fire protection valves, hardware, electrical hardware, aerospace, machine manufacturing and so on.
Quanzhou Yueli Automation Equipment Co., Ltd has developed from a simple assembly manufacturing industry to be a machining manufacturer which collects research and development, production, sales and service. It owns CNC gantry rail grinder machine, boring mill, milling, digging, polishing compound machine and other advanced test equipment. Our company product is from sales, service network throughout the China domestic market. They are exported to foreign countries and regions.
We continue to innovate and strive for perfection in our products. We are specialized at quality, focus on the spirit, dedicated service to acquire the perennial support and profound affection from our customers.
In the future, we will continue to pay attention to the needs of users, constantly improve the professional level, the quality of science and technology. Win the market with the quality. We are willing to join hands in creating our brilliant future.

---
