Product Details
Product Description
Product Description
Product Description
Product Application
1.The pulp paper egg tray machine is controlled by PLC, the degree of the automation is high, and it is easy to learn, service is convenient. Also the scope of the machine is widely .The equipment is best-selling nation and is sold abroad.
2.This machine mainly produce the pulp molded products,such as egg tray , egg box, fruit tray,coffee tray.
3, The material for the molded pulp products is waste paper,corrugated paper, waste newspaper,magazine.
4.The Molding machine part is 8 faces rotating drum, each surface has 3 moulds. So there are 24 moulds and other have 3 transfer moulds. The moulds material can use plastic or aluminous depend on buyer's request.
5.. The major equipment of the machine are three parts include: Pulp Making System, Molding System, Drying system and packing system.
Machine System
A. Pulp Making System Hydraulic, Pulp Pump, Pulp Screen Machine, Pulp Breaking Machine, Stirrer and so on.
B.Molding System Rotary Type Molding Machine, Vacuum Pump, Air Compressor, Vacuum Tank, Water Pump and so on.
C.Drying System Bellows, Air Blower, Conveyer
D.Packing Machine High quality of pulp molding machine for paper trays could design according to the customer’ requirement.
Main Features
1 High automation, low labor cost
2.Low production cost
3.Energy saving(by 30%-50% compared with other manufacture)
4.Water saving(complete water treatment system equipped)
5.Efficient Multilayer dryer, saving space(by 33% compared with traditional dryer)
6.Stable final product quality(same weight, same dimention,strong and good look)
Detailed Images
Main equipments of egg tray machine
1. Pulp molding system: Hydraulic pulper, High-frequency vibration sieve frame, Pulp pump, Strengthening of self-priming pump, Agitator, Control cabinet of pulping system
2. Forming system: Rotary forming machine, Molds, Vacuum pump, Screw Air Compressor, Vacuum buffer tank, Air compressor storage tank, White Water pump, High-pressure water pump, Refiner machine, Power cabinet of forming system
3. Drying system: Conveyor, Blower, Induced fan, Burner, Bellows, etc
4. Packing system: Packing machine
Photos of egg tray machine
1. Pulping system
Item
| Qty
| Power
|
Hydrapulper
| 1
| 7.5kw
|
Refiner
| 1
| 7.5kw
|
Pulp pump
| 3
| 2.2kw, 2.2kw, 1.5kw
|
Agitator
| 2
| 2.2kw, 1.5kw
|
Vacuum tank
| 1
| 0
|

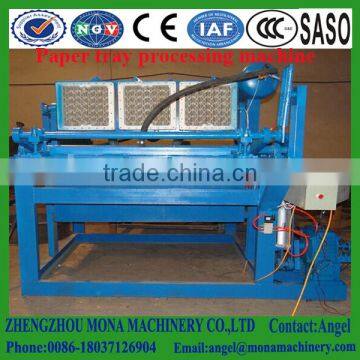

2. Forming system
- Consist of 1pc of forming platen and 1 pc of transfering platen.
- Platen size: 1100x470mm,4sets of 30-cell egg tray molds can be mounted on forming platen.
- Forming efficiency: 5-6 cycles/min;
- Equiped with vacuum auto draining system;auto cleaning system for the forming mold and auto control
cabinet.
- Egg box Machine can produce various trays/cartons with different moulds as per your specification or
sample
- Product Type: Egg Tray Machine
- Output: 700pcs, 1000pcs, 1300pcs per hour
Model
| Capacity/h
| Production line type
| Power
| Drying method
|
MN-1000A
1*3
| 800-1000pcs/h
| Semi-automatic
| 28kw
| Natural drying
|
MN-1500
1*4
| 1500pcs/h
| Automatic
| 34kw
| Natural drying
|
MN-2000
3*4
| 2000pcs/h
| can be choosed
Semi-automatic/automatic
| 49kw
| build kiln drying
Automatic belt drying or
|
MN-2000A
2*3
| 2000pcs/h
| Automatic
| 41.5kw
| Build kiln drying
|
MN-2500
4*4
| 2500pcs/h
| 4*4 full automatic
| 60kw
| Automatic belt drying
|
MN-3000
4*8
| 3000pcs/h
| 4*8 full automatic
| 116kw
| Automatic belt drying
|
5*8
MN-4500
| 4500pcs/h
| 5*8 full automatic
| 130kw
| Automatic belt drying
|
Finished peoduct
Our Service
After receiving your inquiry, we will respond in 1 hour for introduction and details sending
And we will help you to choose the model according to your factory area.
After you choose the model, we will offer price immdaitely with quoation format details.
After sales, we will supply you the technical data details and professional technician for overseas installation
Our production line work flow for paper egg tray machine
3. Drying system
Drying method
| Burning material
| Introduction
|
Sun dried
| solar energy
| Suitable for small production machines
|
Cement construction
drying road
|
Coal, natural gas, different price )
oil(different fuel
| Provided by the customer bricks, cement and so on the user is currently making the factory
floor
|
Metal multilayer
drying
| Natural gas, oil
| 1. Outline dimension:20080x2650x3600mm;
2. Single layer conveying chain;heated by section; multi burners;
3. Six layers drying line, energy saving an saving
place
4.The temperature of each section can be
adjusted
5. The energy for option: LPG,GAS,diesel oil,
independently;burners with French or Italian
brand;
|
