US$59,999.00-69,999.00
|
1 Set
(MOQ)
|
Basic Info.
Model NO.
ZRS41.2-108H-425mm
Certification
CE, ISO9001
Automatic Grade
Automatic
Applicable Material
Polyester
Transport Package
Steel Case
Specification
CE, ISO9001
Production Capacity
10 Sets Per Month
Product Description

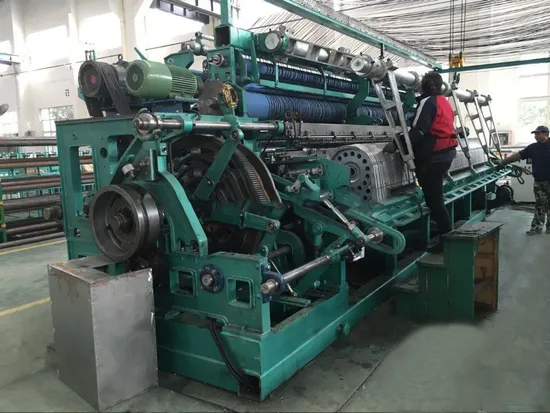

Fishing net machine
1 The most robust fishing net machine
2 Largest amount of weft twine
3 Suitable for making bottom trawl netting, trawl netting, safety netting and so on
| Model | ZRS25.4-210H | ZRS28-180H | ZRS32-160H | ZRS35-155H | ZRS38-138H | ZRS41.2-130H | ZRS44.4-120H | ZRS50.8-105H |
| knot type | S | S | S | S | S | S | S | S |
| pitch (mm) | 25.4 | 28 | 32 | 35 | 38 | 41.2 | 44.4 | 50.8 |
| width(number of meshes) | 210 | 180 | 160 | 155 | 138 | 130 | 120 | 105 |
| Spool diameter (mm) | 425 | 425 | 425 | 425 | 425 | 425 | 425 | 425 |
| Twine applicable | Nylon braided cord (mm) | 1.3-4.5 | 1.5-5.0 | 1.8-6.0 | 2.0-6.0 | 2.5-6.5 | 2.7-7.5 | 3.0-8.0 | 4.0-10.0 |
| Nylon monofilament(mm)(mm) | 210d/30-180 | 210d/42-210 | 210d/51-360 | 210d/90-420 | 210d/150-780 | 210d/180-1000 | 210d/180-1200 | 210d/210-1600 |
| PE twine denier/ply | 400d/18-84 | 400d/21-102 | 400d/36-180 | 400d/45-210 | 400d/75-240 | 400d/81-270 | 400d/90-300 | 400d/120-360 |
| Mesh size (mm) | 40-200 | 45-200 | 52-200 | 62-200 | 70-200 | 75-200 | 78-200 | 100-200 |
| Rotative velocity (r/min) | 11 | 11 | 10 | 9 | 11 | 10 | 10 | 9 |
| Motor Power (kw) | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 |
| Outline size | Length (mm) | 9236 | 6050 | 9283 | 10015 | 9146 | 9266 | 9235 | 9236 |
| Width (mm) | 5540 | 5540 | 5540 | 5540 | 5540 | 5540 | 5540 | 5540 |
| Heigth (mm) | 2650 | 2650 | 2650 | 2650 | 2650 | 2650 | 2650 | 2650 |
| Weight (KG) | 25000 | 24500 | 24500 | 26850 | 23500 | 25300 | 25300 | 25600 |
>>
