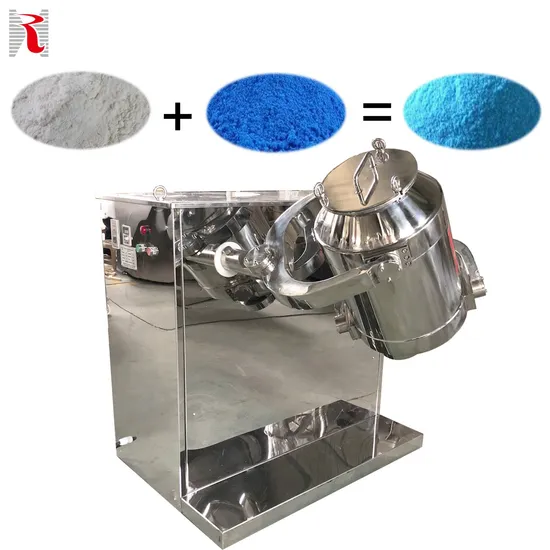

Hot Sale High Speed Rotary Chemical 3D Powder Mixer Machine

Product Description

Certifications

Product Description
Working principle:
Driven by the active shaft, the composite cylinder containing the mixture material performs compound movements such as translation, rotation and tumbling, which promotes the three-directional compound movement of the ring, radial and axial along the inner surface of the cylinder. In order to achieve the mutual flow, diffusion, accumulation, and doping of various materials, to achieve the purpose of uniform mixing.
Application
Widely used in high uniformity mixing of powdered and granular materials in pharmaceutical, chemical, food, light industry, electronics, machinery, mining and metallurgy, national defense industry, and various scientific research units.
Main features
1. Due to the multi-directional movement of the mixing barrel, the material basically has no centrifugal force, no specific gravity segregation and layering and accumulation. Each component can have a disparate weight ratio, and the mixing rate can reach more than 99.9%, which is one of the most ideal products in the mixer type.
2. The filling rate of the cylinder is large, up to 50-80% (common mixer is only 40%), with high efficiency and short mixing time.
3. The arc is used excessively everywhere in the cylinder, and the inner and outer surfaces are precision polished, so the appearance is beautiful.
4. Stable and reliable operation, low vibration, easy operation and maintenance.
Main Technical Parameters

Model	Volume of Mixing Vat(L)	Max.Charging Volume(L)	Rotation Speed of spindle(R/min)	Power(KW)	Weight(KG)	Dimension(mm)
SBH-50	50	40	8	1.1KW	300KG	1000*1400*1200
SBH-100	100	80	0-17	1.5-2.2	500
SBH-200	200	160	0-15	2.2-3	600

Configuration List

No.	Name	Specification	Material	Qty.	Origin
1	Main Unit	1000*1400*1200	The main frame is 12# channel steel welded and covered with 1.2mm stainless steel	1	HERUN
2	Mixing Drum	50L	304 3mm Coil Welding	1	HERUN
3	Transmission Shaft		A3	2	HERUN
4	Transmission Arm		Stainless Steel	2	HERUN
5	Control Cabinet	Button Control	Stainless Steel	1	CHNT

Our Company
Herun Machinery (Shanghai) Company Limited, founded in 2011, located in Shanghai, enjoying convenient transportation and beautiful environment, is a professional company for pharmaceutical and food machinery, with C E certificates covering all the equipment we supply. What's more, it is administrated strictly by I S O 9 0 0 1 management system for the whole production and sale process. Herun Machinery is specialized in supplying generally 7 categories of products in pharmaceutical and food industry, such as mixer , coating machine, blister packing machine, counting and packing line and liquid filling line. We have the own design and development ability for all the machines we are supplying. We are committed to meeting customer's requirements and solving problems during client operation relying on a strong and efficient engineer team. For installation of machines and operation training, our engineer can also go abroad in person to help the customer at his production base. We can accept O D M and O E M orders, helping customers to build his own brand and sales network. By stable quality, reasonable price and reliable after-sale service, during the past 14 years, we have established permanent and good relationship with more than 300 customers all over the world, such as Europe, North America, South America, the Middle East, Southeast Asia. You can feel free to talk to our customer service center about your requirements. With the business philosophy of quality first, customers supreme, we look forward to the sincere cooperation with you!


Other Products
FAQ
Q1: Where is your factory? How can I visit your factory?
A1: Our factory is located in Shanghai. We are warmly welcome you to visit the production base if you have a travel plan.
Q2: How can I know your machine is designed for my product?
A2: If you don't mind, you can send us material sample and we test it on the machine. During that time, we will take video and clear, pictures for your reference. If possible, we even can hold video conversation online with you.
Q3: How can I trust you for the first transaction?
A3: Please note that our above business licenses and certificates. And if you don't trust us, we can use ****** Trade Assurance service, it will protect your money during the whole transaction.
Q4: How about the after service and guarantee period?
A4: We make the warranty of 12 months from the machine's arrival in buyer's facility. With a professional team of experienced technicians, we can serve abroad and do the best after-sale service to assure the machine's perfect operation.
Q5: How can we contact you?
A5: Please leave a message and click "send" to send us an inquiry.

---
