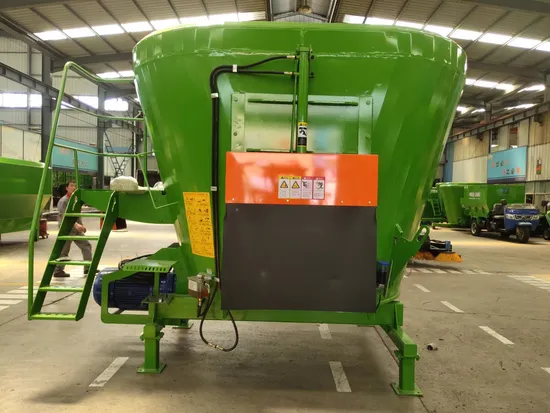

Tmr Whole Ration Preparation Machine Total Mixed Ration Feed Mixer Machine for Cow Farm

Product Description

TMR whole ration preparation machine Total Mixed Ration Feed Mixer Machine for Cow Farm
Product Description

Model specification	Supporting power	Kneading length	Production efficiency	Rotating motor model	Drum rotating power	Control mode
9FC-60	18KW	3-5cm	2 tons/hour	BM4-630	3 kW	Motorized pushbuttons
9FC-80	18KW	3-5cm	2 tons/hour	BM4-630	3 kW	Motorized pushbuttons
9FC-90	30-37KW	3-5cm	3 tons/hour	BM4-630	/	/
9FC-100	55KW	3-5cm	2~4 tons	BM4-630	5	Motorized pushbuttons
9FC-130	90KM4 class motor	3-5cm	8-10 tons/hour	BM4-630	Hydraulic drive	Manual hydraulic valves

Product Features This machine is composed of rotary feeding bin, grass cutting and crushing device, frame and so on. The straw device is composed of spindle, rotor, fixed knife, throwing device and so on. Through the high-speed rotation of the rotor, using the hammer blade knife and fixed knife gap material, through the centrifugal force to throw the finished material. The rotating feeding bin is rotating without shaft, relying on idler wheel to support and oriented, in the inner side wall of the rotating feeding bin is equipped with push grass inclined plate, in the bottom plate of the bin is equipped with inclined arc turning grass block, inclined arc turning grass block's upper surface is a slanting structure, the material passes through the side of the turning grass block and the top of the block, so that the crushing device crushes the material, due to the rotating bin continuously the crushing device rotates, and the crushing device carries out continuously the Crushing. This greatly improves the production efficiency.
Performance Characteristics 1,Easy and quick operation, high production efficiency.Automatic feeding, continuous production. Loader feeding, no need for manual labor. Easy to move the equipment.
2,The turntable can store a large amount of material, realize intermittent feeding, loader feeding, no artificial. Convenient and quick operation, high production efficiency.
3,Hammer blade is made of excellent material, the hammer blade is made of manganese steel with tungsten carbide as the edge of the main plate, and the hammer blade can be used continuously for 6 months.
4,Steel structure components, solid and reliable material selection, the use of high-power double-row bearings, long service life. The crushing effect is not the effect of old-fashioned grass cutting, this machine to cut off, cut short, grading broom for the purpose. A machine can be suitable for all straw materials at the same time at the same time for crushing.
5, crushed grass length, according to user requirements, can be adjusted.One machine can be suitable for crushing all straw materials at the same time, with stable performance and long service life.
6,Automatic lubrication, automatic refueling, regular refueling.
ATTENTIONS
This equipment only requires two people to operate, saving you a lot of labor. Trailer mobile crusher, convenient for field production.
Motor and traction dual power can be selected
