US$500.00-1,680.00
|
1 Piece
(MOQ)
|
Basic Info.
Certification
CE, ISO, GOST, SONCAP, CCC, API
Main Material
Stainless Steel
Corner
Round Corner, No Dead Corner
Applications
Powder, Grain, Flake
Operating type
Cycle Operating
Transport Package
Wooden Case
Specification
CE, SGS, ISO, GMP
Production Capacity
500set/ Year
Product Description

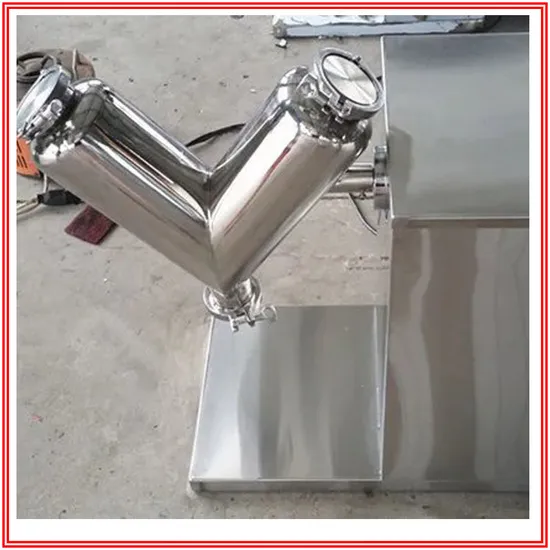

The VH series of small V-type mixers are used in laboratories, universities, scientific research institutions, etc., to mix dry powder or granular materials with good fluidity.
Performance structure
*VH series V-type high-efficiency mixer can vacuum suction and seal butterfly valve discharge, and implement dust-free operation.
*The V-type mixer is composed of two asymmetric cylinders, the material can flow in the vertical and horizontal directions, and the mixing uniformity can reach more than 99%.
*Cylinder body is made of stainless steel plate, inner and outer walls are polished, clean and sanitary, no accumulation of materials, meeting GMP requirements.
*VH series V-type high-efficiency mixer is easy to operate, and can be equipped with timing operation or inching operation.
Technical parameters
| Model | VH-2 | VH-5 | VH-8 | VH-14 | VH-20 |
Total
volume(L) | 2 | 5 | 8 | 14 | 20 |
| Working volume (L) | 1 | 2.5 | 4 | 7 | 10 |
| Mixing time (min) | 10~15 | 10~15 | 10~15 | 10~15 | 10~15 |
| Rotary speed (rpm) | 20 | 20 | 20 | 20 | 20 |
| Power(kw) | 0.04 | 0.55 | 0.55 | 0.55 | 0.75 |
| Dimension (mm) | 475*205*390 | 720*350*610 | 810×350×620 | 930×360×820 | 950*390*890 |
Mixer in stock, fast delivery
Export wooden packing
>>
