Sewing Machines Automaticbutton Making Machine Automatic Button Machine Button Attaching Machine

Product Description

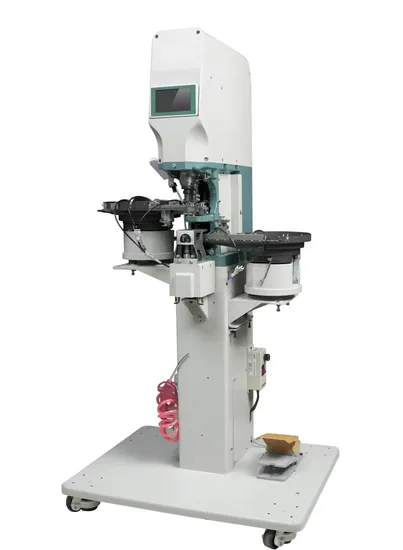

Automatic Button Sewing Machine
Machine Characters:
1. The machine adopts full touch screen human-machine interface, it is easy to operate and maintain.
2. Punching, shifting, feeding and riveting can be completed automatically at one time.
3. Electric and pneumatic universal mode for button attaching. No special mold is needed, and the connecting mold can be replaced easily.
4. With foot control feeding mechanism, upper and lower buckle feeding at the same time.without vibration and noise
5. Laser assisted positioning is used to make the riveting position more accurate.
6. Punchine,riveting buttons,straight front and back movement to ensure that buttons concentric.
7. Fast fastening speed: speed up to 3000RPS,>50pcs/minute, 4-6 times faster than normal manual labour.
NEW UPGRADE POINT:
1. Small mouth nesa: a wider range of application.
2. Automatic drainage: improve the service life of pneumatic components.
3. As different button sizes, the track can be adjusted in width and height.
4. Step two sections: no need to adjust the magnetic switch.
5. Impoved stability of the lower feeding buckle, bottom feeding more accurate and more efficient.
6. Bottom buckle and gasket: suitable for more than 95% of C buttons on the market, multiple screening,
multiple adjustment, 5-6 times faster thean manual gasket.

Technical Specification:

Model	196-A	196-C	196-C-S	196-C-Q
Efficiency	>50pcs/minute
Button size	1-22mm	5-15mm	9-12mm	6-12mm
Button thickness	0.1-5mm( thickness of buckle end face)			3-8mm(total thickness of air eye buckle)
Air pressure	0.3 - 0.8Mpa
Application	The buttons for clothing, leather goods, shoes, hats, luggage, etc. Including I-shape buckles,four in one buckles,hat nai buckles, corn eye buckles, sharking head buckles, rivet buckles, and collision nail bcckles.
Motor	750W sevo motor, speed at 300rpm, Voltage: 220V
Package size	L95cm X W70cm X H140cm
Gross Weight	150KG

MACHINE DETAILS:
Finshed as below:

---
