Ductile Iron/Wcb/Stainless Steel Non Rising Stem CF8 Flanged Connection API Gate Valve

Product Description

Ductile Iron/Wcb/Stainless Steel Non Rising Stem CF8 Flanged Connection API Gate Valve
Medium and Application
Medium: Freshwater, sewage, seawater, air, steam, food, medicine, oil, acids, etc.
Application:
Municipal Ballast and bilge system Chemical processing
Desalination plants Drilling rigs Drinking water
Dry powder Food and beverage Gas plants
HAVC Mining industry Pulp and Paper industry
Sand handling Seawater Sugar industry
Petroleum and petrochemical Thermo technical water treatment Waste water
Sepcifications

Size	DN40-DN600 1-1/2"-24"
Working Pressure	PN10/PN16/125LB/150LB
Face to face	EN558-1,ASME B16.10, AS2638
Flange drilled	EN1092-2, ASME B16.1/16.42, AS4087
Working environment	Water, Oil, Steam
Working temperature	<=100ºC
Available Material	DI, CI, Stainless Steel, Carbon Steel

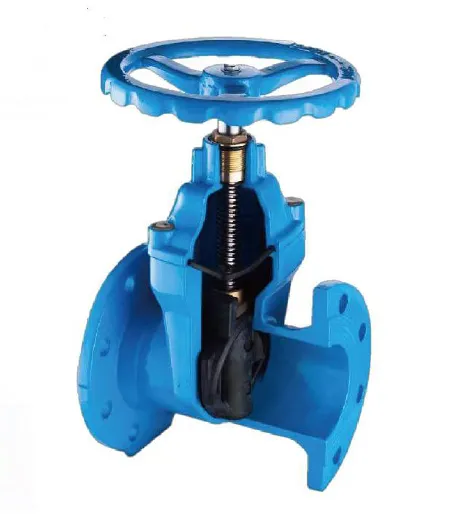

Picture & Drawing

Part Material

ITEM	PART NAME	MATERIAL
1	Body	Cast Iron or Ductile Iron
2	Bonnet	Cast Iron or Ductile Iron
3	Disc	Cast Iron or Ductile Iron
4	Seal Ring	Cast Brass(Bronze) or Stainless Steel
5	Stem	Stainless Steel
6	Packing	Graphite
7	Gland	Cast Iron or Ductile Iron
8	Handwheel	Cast Iron or Ductile Iron
9	Gasket	NBR/EPDM

Dimension

	BS5163	DIN-F4	ANSI B16.10	JISB2002	EN1092-2				JIS B2212				ANSI B16.1
DN(mm)&INCH	L				D(PN10)	D(PN16)	K	n-d	D(PN10)	D(PN16)	K	n-d	D	K	n-d
40(1-1/2")	165	140	165	165	150	150	110	4-19	140	140	105	4-19	127	98.5	4-16
50(2")	178	150	178	180	165	165	125	4-19	155	155	120	4-19/8-19	152	120.5	4-19
65(2-1/2")	190	170	190	190	185	185	145	4-19	175	175	140	4-19/8-19	178	193.5	4-19
80(3")	203	180	203	100	200	200	160	8-19	185	200	150/160	8-19/8-23	191	152.5	4-19
100(4")	229	190	229	230	220	220	182	8-19	210	225	175/185	8-19/8-23	229	190.5	8-19
125(5")	254	200	254	250	250	250	210	8-19	250	270	210/225	8-23/8-25	254	216	8-22
150(6")	267	210	267	270	285	285	240	8-23	280	305	240/260	8-23/12-25	279	241.5	8-22
200(8")	292	230	292	290	340	340	295	8-23/12-23	330	350	290/305	12-23/12-25	343	298.5	8-22
250(10")	330	250	330	330	395	405	350/355	12-23/12-27	400	430	355/380	12-25/12-27	406	362	12-25
300(12")	356	270	356	350	445	460	400/410	12-23/12-27	445	480	400/430	16-25/16-27	483	432	12-25
350(14")	381	290	384	381	505	520	460/470	16-23/16-27	490	540	445/480	16-25/16-33	533	476	12-29
400(16")	406	310	406	406	565	580	515/525	16-27/16-32	560	605	510/540	16-25/16-33	597	540	16-29
450(18")	132	330	432	132	615	640	565/585	20-28/20-31	620	675	565	20-27	635	578	16-32
500(20")	157	350	457	457	670	715	620/650	20-28/20-34	675	730	620	20-27	699	635	20-32
600(24")	508	390	508		780	840	725/770	20-31/20-37					813	749	20-35

Application
Packaging
We value the packaging of our products. Multi-layer packaging prevents impurities from adhering to the valve body and is brought into the media
Meet us in Exhibition

FAQ: (Frequently Asked Questions)
1. What is your MOQ?
Our MOQ is usually 5 CTNS.
2. What is your delievery time?
Our delievery is about 25-30days.
3. What is your payment terms?
We accept T/T, 100% L/C, or West Union and so on.
4. Could you provide free samples?
Usually, we offer free samples, customers bear freight cost.
5. Why choose us?
Firstly, comparing with many factories, our prices are more competitive.
Secondly, We 100% test working pressure for ALL our products.
Finally, After- Services will be highly satisfied. Any problems and feedbacks will be responded efficiently.

Company introduction
SWD PLASTIC (Salvador Industrial Co., Ltd) is a leading and professional manufacturer and exporter for UPVC, CPVC, PPH, PVDF pipes, valves and fittings in China. We stick to the principle of " Quality First, Service First, Continuous Improvement and Innovation to Meet the Customers", and the quality management objective of " Zero Defect, Zero Complaints".
SWD Products are widely used in Agricultural Irrigation, Wastewater Treatment, Aquaculture, Pharmaceutical Industry, Electroplating, Papermaking Industry...
Most of our products confirm to ANSI, DIN, BS, JIS & TIS standard and have been already sold to United States, Canada, Mexico, Chile, Colombia, Peru, Russia, Saudi Arabia, UAE, Iran, Iraq, Thailand, Philippines, Indonesia, Malaysia etc. With very good reputation.

---
