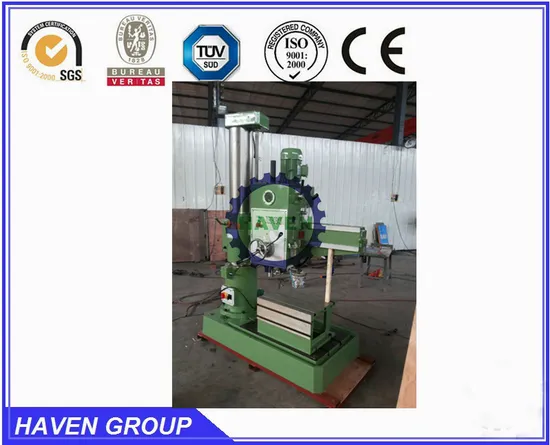

Metal Radial drilling machine Z3080X25

Product Description

Z30380x25 Radial Drilling Machine
Character
Gather mechanical-electrical-hydraulic functions, use extensively. With wide range of speed and feed, with manual,power and fine feeds. The feed of machines are very easily engaged and disengaged at any time. With safe and reliable feed safety machine, all parts easy operation and change. All controls centralized on the head stock easy operation and change. Clamping for assemblies and speed change of spindle achieved by hydraulic power, cmle is sensitna owet nelile.
Main parts are made by machine center which import form KIA with high precision and efficiency ,ensuring reliability and high quality. Integrating technology for casting parts is excellent, adopting casting equipment, ensuring high quality of material for basic parts. Spindle parts are made by special high quality steel heat treatment to be made by first class equipments, ensuring high strength and durability. Main gears are machined by gear grinding, the machine ensuring high precision and low noise.
Main parameter :

Model	Z3080×25
Max. Drilling capacity	80
Distance spindle axis to column generating line (mm)	500-2500
Diameter of column (mm)	550
Spindle taper	MT6
Spindle travel (mm)	450
Spindle speeds range (r/min)	16-1250
Spindle speeds series	16
Range of Spindle feeds (r/min)	0.04-3.2
Spindle feeds	16
Max. Distance spindle nose to working surface of base (mm)	550-2000
Dimension of worktable (mm)	1000×800×560
Dimension of base (mm)	3530×1400×300
Overall Size (mm)	3730×1400×3790
Power of Main motor (KW)	7.5
G.W/N.W (kg)	15000/11000
Packing dimension (cm)	416×165×248/382×163×170

Standard accessories
Box shape worktable
Taper sleeve
Tool releasing Wrench
Drift
Eyelet bolts

---
