Wall-Traveling Jib Crane with Electric Chain Hoist

Product Description

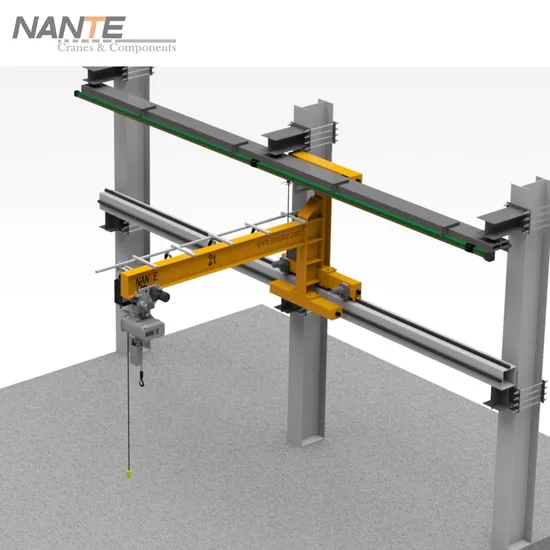

Wall-Traveling Jib Crane with Electric Chain Hoist
Product Description
Wall traveling jib crane is a kind cost effective jib crane, travels along the rail mounted on the wall or other supporting structure and can make full use of the working space for material lifting and moving. The wall traveling crane can provide lateral movement of heavy materials and at the same time, the hoisting equipment working with the crane can lift the materials in vertical direction, which makes the best use of the working space and save much manpower, since manually lifting and moving heavy objects is hard and time consuming.
Wall-mounted jib cranes from NANTE enable you to perform material handling tasks in large areas without footings or floor space. Their versatility allows you to use them and then quickly fold them out of the way of large overhead cranes. A NANTE wall-mounted jib crane's lift capacity can range from 125kg to 5000kg tons depending on the system type.
Features of NANTE Wall-Traveling Jib Cranes
Light structure, few demand to architecture, confirming to state standards Compact structure with novel, reasonable and simple design Light weight, moving flexible Convenient in operation, and turn to flexible. Cost-effective price and low maintenance.
------------------------------------Design and manufacturing features---------------------------------------
Design Code:
NANTE's Wall traveling jib crane follows the design code of FEM, CMAA, ISO EN, BS, GB standard.
Boom:
I beam, KPK Track, C track and I beam can be selected for the Wall traveling jib crane arm.
Hoist:
Chain hoist or wire rope hoist can be selected. Compact structure, smooth operation, accurate positioning, high Safety reliability, and Maintenance-friendly.
Control Panel:
Follow IEC standard, IP55 powder coating high quality enclosure, socket plug-in for easy connection, DIN standard terminal, international brand for the inverter, MCB, Contact and electrical devices on the panel
Festoon System:
Double line Galvanized C track system with flexible flat cable, one line for hoist power and signal transmission, one line for the pendent control trolley movement. No-welding claw is design for the brackets of the festoon system fixing.
Safety Protection Functions:
NANTE Wall traveling jib crane include a lot of protection functions, like Overheat protection for the lifting, load cell type overload limit switch, up&down position limit switch, cross limit switch for the cross travel and long travel. Phase sequence relay, and other optional functions, like crane monitoring system, LED load displayer.
Controls:
NANTE Jib crane can offer both options of remote control and pendent control
Anti-corrosive Treatment:
Shoot Blasting follow ISO8501-1 SA2.5 class, roughness follow ISO 8503 G class, clearness follow 8502-3 Level II. Use top brand's Rich zinc epoxy painting for the prime, middle layer coating. Use polyurethane topcoat for the finished layer coating. All NANTE painters are trained or inspected by NACE or FROSIO level II Inspector
Application:
Wall traveling jib crane widely used in factories, mines, workshops, field, warehouse, small equipment installation. Mobile cantilever crane application occasions: factories and mines, workshop production lines, assembly lines, mechanical processing and heavy lifting of warehouses, docks and other occasions.
Product Parameters

Technical Data of Wall Traveling Jib Crane

Capacity

125kg

250kg

500kg

1000kg

2000kg

3000kg

5000kg

Arm Length(m)

2 ~ 8

2 ~ 8

2 ~ 8

2 ~ 6

2 ~ 6

2 ~ 8

2 ~ 8

Height of Lifting(m)

2 ~ 10

2 ~ 10

2 ~ 10

2 ~ 10

2 ~ 10

2 ~ 10

2 ~ 10

Control Method(m)

Pendent or Remote control

Lifting Speed(m/min)

Chain Hoist

8/2

8/2

8/2

4/1 or 8/2

4/1 or 8/2

3.2/0.75

3.2/0.75

Wire Hoist

/

/

/

/

5/0.8

5/0.8

5/0.8

Trolley Speed(m/min)

0~20

0~20

0~20

0~20

0~20

0~20

0~20

Long Travel Speed(m/min)

0~20

0~20

0~20

0~20

0~20

0~20

0~20
