Two Roll Mill

Product Description

Product Description

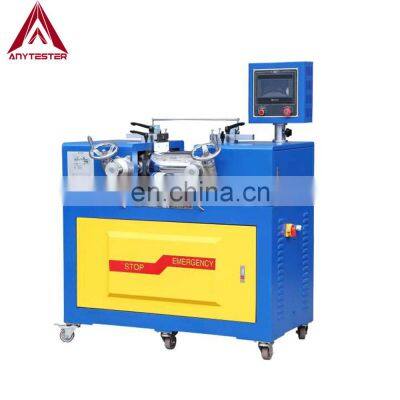

Product DescriptionSeries Two Roll MillAT380 Series Two Roll Mill (original HY3870) is used to mix, scatter and plasticize materials for color matching, quality control and research. It is suitable for masterbatch, PVC, plastic, pigment dispersion on plastics, etc.Details and Features★ Hard chrome plated rolls with mirror polished surface, anti-corrosive, high temperature resistant, fast thermal conduction1.Emergency stop pull rod on the top of machine. Pull the rod, the two rolls will stop immediately.2.Reversal stop switch on the front door. Kick the switch with knee, the two rolls will rotate reversely and stop after a few seconds. This time can be set by the user.3. With emergency stop button on the controller.4. Available with safety hood to prevent the operator hands stretch into the two rolls (optional).5. Pneumatic emergency stop function to separate rolls to avoid secondary damage (optional)★ Two heating modes optional: electric heating or oil heating, with or without water cooling★ The roll size can be customized according to requirement.★ It adopts precision screw rod to adjust roll gap, digital display, 0.1~8mm adjustable.★ The speed of two rolls can be fixed with a constant friction ratio, or be adjustable with a constant friction ratio, or be adjustable with variable friction ratio.Technical specificationModelAT381AAT381BAT381CAT381DCapacity1~3kgRoll sizeØ150×320mm or customizedRoll materialHigh hardness SKD chromium molybdenum alloyTemperature rangeRT-300℃R.TRT-300℃Temperature deviation±3℃/±3℃Heating timeR.T to 200℃ in 25min/R.T~ 200℃ in 25minHeating modeElectricOil/ElectricCooling mode//WaterNip gap0.05~8mm adjustableSpeed of front roll24rpm or 0~35RPM adjustable or customizedFriction ratio1:1.27 or customizedPower12KWPower supply3phase AC380V 50Hz, 22ADimensions (mm)1000×430×1150Weight (kg)410Our CompanyPayment Payment term T/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdDelivery Time7~10days after receiving payment for one containerContacting UsPacking & DeliveryPackagingPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip.2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated.

---
