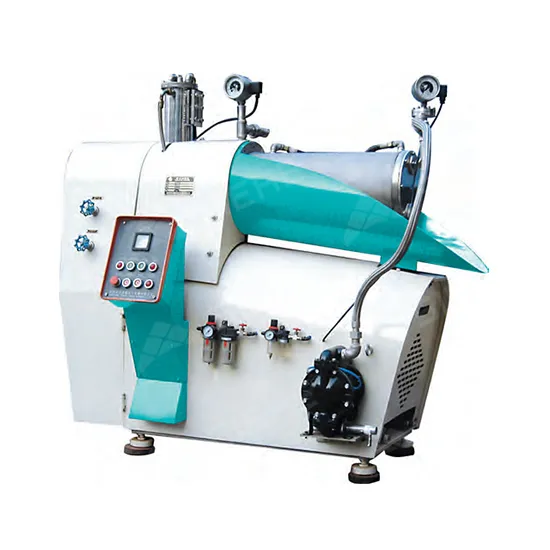

Siehe Painting Disc Type Horizontal Grinding Mixer Bead Mill Machine

Product Description

Product Description
Disc Type Horizontal Beads Mill is a closed continuous production machine for grinding liquid materials. It is one of the most popular wet grinding machines in the market with good performance and mature structure. And it is characterized in simple operation, good reliability and full specifications. Its sealing structure adopts double end mechanical seal with self-lubricating system, sealing liquid is optional, more reliable and durable. The machine is also with temperature, pressure monitor and protection to ensure the quality of the finished product. Using cerium stabilized zirconium bead (80% Zirconia content), suitable for grinding paste with fineness requirements of 10-20 micron. It is widely used in coating, paint, ink, pesticide and other industries.

Materials Viscosity	≤20,000 cps
Production Capacity	10-4000L/h
Application Industry	Coating, paint, ink, pesticide and other industries
Applicable Materials	Paste with viscosity below 20,000 cps and grinding fineness can be down to 10micron, such as primer, intermediate coating, pesticide suspension agent etc.

MID BATCH HORIZONTAL BEADS MILL
SWS- 20 TO SWS-50
Grinding rotors are alloy steel;
Can customize with ex-proof type;
With 1.6-2.2mm zirconia beads.
PRODUCTION TYPE HORIZONTAL BEADS MILL
SWS-100 TO SWS-300


Grinding rotors are alloy steel;
Can customize with ex-proof type;
With 1.6-2.2mm zirconia beads.

GRINDING COMPONENTS
Alloy steel, better wear-resistant; High linea speed, more efficient;
Double-end mechanical seal, more stable.
Product Parameters
Low energy consumption ratio and high cost performance
Driven by a motor to transmit power to the main shaft through big and small pulleys, which is easy to start; The grinding disc is with a special disc structure, which brings high efficiency and low power consumption; It is a product with high cost performance among the different beads mills.
Easy to operate and clean
With site control panel, which is integrated with the machine frame, easy to operate; With beads collection tray, the grinding chamber is easy to assemble and disassemble with the frame. With a pulley grinding chamber removal device, it can effectively clean the grinding chamber and zirconium beads for materials of different colors and varieties.
Safe monitoring, stable finished products
The grinding chamber is equipped with a special cooling water jacket. When the machine running, input cooling water for cooling.The cooling result is excellent. The conventional temperature rise is less than 10ºC. The equipment is equipped with temperature and pressure monitoring, which can set the "protection value" to ensure finished product quality.
Full specification, customized options
Full specification from 20L to 300L. Can be customized to be Explosion proof type.
Industrial Applications
Company Profile
SIEHE GROUP established in year 2009, start with liquid machine manufacturing. After more than ten years of efforts, SIEHE Group has developed into large-scale machinery industry group company. lts headquarter is located in Honggiao, Shanghai, China. lts production bases are in Jinshan, Shanghai,Wuxi and Yangzhou in Jiangsu, with a total plant area around 32000m2. The production bases are equipped with more than 160 sets of advanced production processing and testing equipment including: turning and miling center, large gantry five- axis machining center, horizontal five-axis boring and miling machining center, Vertical five axis machining center, vertical CNC lathe machining center, trilinear coordinates precision measuring instrument, image measuring instrument precision altimeter etc.. With strong production and quality control capacity, SIEHE group carries out product design, processing,assembly and testing in full accordance with the lSO9001 quality management system, and has passed professional institution certification.
Production Equipment
Five-axis Gantry Machining Center Turning and Milling Center CNC Boring and Milling Machining Center
CNC Vertical Lathe Vertical Machining Center CNC Five-axis Gantry Machining Center
Customer Photos

---
