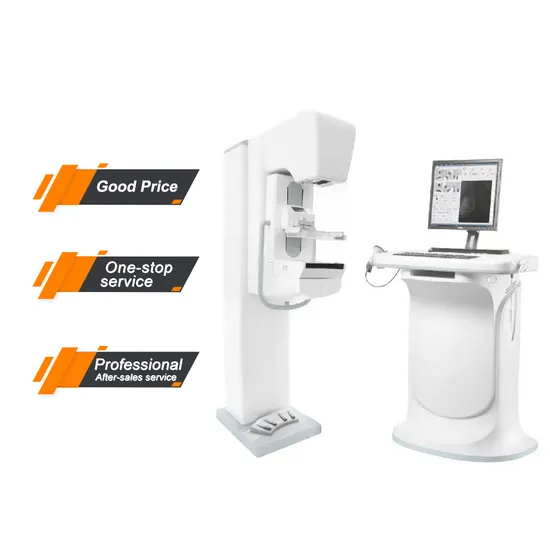

My-D032g Female Breast Examination X-ray Machine Mammography Xray Equipment

Product Description

MY-D032G Female breast examination x-ray machine mammography xray equipment
Features
Professional mammography x-ray tube from Italian IAE with molybdenum provides extremely small focus spot, and owns high heat capacity. It guarantees high quality images and long working time.
Self R&D 40kHz high voltage generator uses dual-inverter technology, guaranteeing the stability of X-Ray, largely improving the clarity and quality of images with low dose.
Unique CMOS flat panel detector provides high-resolution images as it is sensitive to X-ray.
Self R&D 'Console' software with national patent, provides strong capabilities of post processing. It has leading post-processing algorithm of breast, which could bring you perfect mammary images.
27'' LCD display.
Specifications
Ambient Conditions
Ambient temperature 10ºC~40ºC
Relative humidity 30%~75%
Atmospheric 70~106kPa
X-ray Generator
Output power 5.0KW
Frequency 80-200KHZ
Current 10-200mA
Voltage 20-50KV
Exposure time 5-10000s
mAs 0.5mAs-600mAs
Self-diagnostic system Tube overload protection
X-ray Tube
Brand IAE (Italy)
Anode type Rotating Anode
Focal spot value 0.1mm /0.3mm
Maximum voltage 40KV
Anode heat storage capacity 300KHU
House heat storage capacity 426KHU
Target material Molybdenum
Anode rotation speed 10000rpm
Maximum anode heat dissipation rate 500W
X-ray detector( Flat Panel Detector)
Scintillator Cesium Iodide
Active area 235*290mm
Active pixel 2762*3408
Pixel pitch 85um
AD Conversion(bit) 16
Spatial resolution 60Lp/cm
Mechanical Device
SID 650mm
Exposure field 240mm*300mm(Maximum)
Up-down movement of c-arm ≥600mm
Rotational angles of c-arm -90°~+90°(Electromagnetic lock)
Rotational angles of tube -30°~+30°
Compression Paddle
Movement type Electric
Up-down movement range ≥210mm
Size of compression paddle 260mm*180mm
Pressure range 0~20kg (0.1kg step)
Workstation
Dual-core CPU 3.3GHz
Memory 4GB
HDD 500GB
Discrete Graphics 1920*1200
Monitor 27'' 3.5M LCD
