Clay Paddle Mixer Machine (WZL)

Product Description

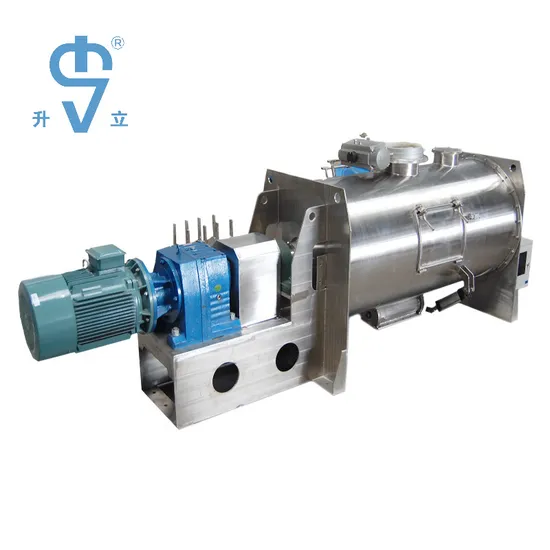

2000L Mild Steel Dry Powder Ribbon Blender For Fertilizer Mixing
our official website:blender1985.en.made-in-china.com
1. Working principles:
In the U-shaped container, there are positive and negative ribbons. Special proportion of the two ribbons can be rectified with the kind of material, quantity and the proportion of body. This Dry powder mixer has good effect on mixing viscosity or cohesion powder.
2. Application:
Powder-Powder , Powder-Grain , Powder-Liquid , Grain-Grain etc.
3. Options:
(1) Motor: Ordinary motor , Explosion-proof motor , Frequency conversion motor.
(2) Decelerator: Xseries gear decelerator , Cycloid decelerator , Worm decelerator.
(3) Discharging valve: Flap valve , Spherical surface valve , State standard valve , Cylinder valve , Non-standard discharging valve.
(4) Control: Manual control , Pneumatic control , Electric control.
(5) Feeding inlet: Standard , Designed as requirement , Manual feeding inlet( with cover).
4. Seal:
Teflon , Mechanical , Air purge
5. Material:
Mild steel ; Stainless steel (304,316,316L etc.).
6. Additional functions:
Outer jacket , Heating jacket , Tube temerature-control jacket , Temperature preservation layer , Batching type , Sprinkling device, Heavy duty type.
7.Data sheet

specification	working capacity(L)	working capacity(KG)	revolution/rotation	power	weight
LHY-0.3	0.18	200	62	5.5	600
LHY-0.5	0.3	300	62	7.5	900
LHY-1	0.6	600	49	11	1200
LHY-2	1.2	1200	33	15	2000
LHY-3	1.8	1800	33	18.5	2500
LHY-4	2.4	2500	27	22	3500
LHY-5	3	3000	27	30	4000
LHY-6	3.6	3600	27	37	4500
LHY-8	4.8	4800	22	45	5000
LHY-10	6	6000	22	55	6000
LHY-15	9	9000	14	75	7500

---
