Heavy Printed Plastic PP PE BOPP Laminated Film Compactor Recycling Granulating Line

US$30,000.00 1 Set (MOQ)

Basic Info.

Model NO.
RCDJ
Material Processed
Film
Plastic Type
PE
Screw
Single-Screw
Automation
Automation
Computerized
Computerized
Certification
ISO9001:2008, CE
Cutting Way
Die Face Cutting
Granules Size
5mm
Degassing
Vacuum Degassing
Humidity
1%
Transport Package
by Sea
Specification
TSSJ100~200 THSJ65~220 TCSJ85~180 TCDJ85~180
Trademark
RETECH
Origin
China
HS Code
8477201000
Production Capacity
100 Sets Per Year

Packaging & Delivery

Package Size
1600.00cm * 500.00cm * 500.00cm
Package Gross Weight
29000.000kg

Product Description

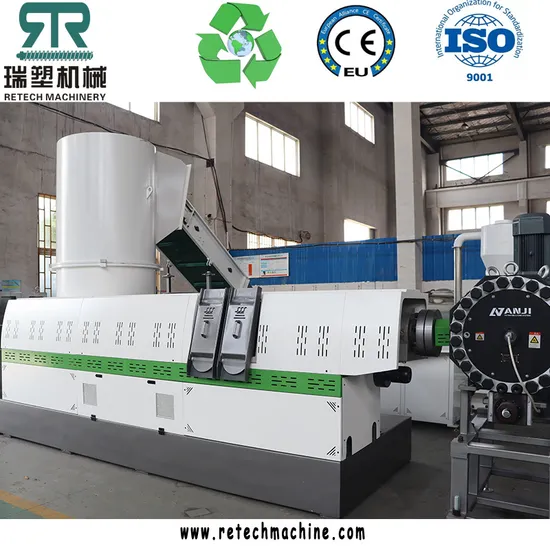

Heavy Printed Plastic PP PE BOPP Laminated Film Compactor Recycling Granulating Line

Product Description
Our PE PP plastic film pelletizing machines consist of extruders, pelletizers, cooling tanks (or air-cooled equipment). Plastic film granulation equipment is complete, can be automatic continuous production, direct granulation, and granulation is clean, pollution-free and aging phenomenon, greatly reducing production costs and improving production efficiency. Plastic film granulation equipment has the remarkable characteristics of small size, high efficiency, good performance, low power consumption, high quality of finished products and wide adaptability, and can be adapted to meet various processing requirements.
Features
Detailed Photos
Product Parameters
Model Diameter of screw PE capacity PP capacity
RCDJ-85 Φ85mm 150-200kg/h 100-150kg/h
RCSJ-85/100 Φ85/85mm 150-200kg/h 100-150kg/h
RCDJ-100 Φ100mm 280-350kg/h 250-300kg/h
RCSJ-100/120 Φ100/100mm 280-350kg/h 250-300kg/h
RCDJ-130 Φ130mm 480-550kg/h 400-500kg/h
RCSJ-130/150 Φ130/130mm 480-550kg/h 400-500kg/h
RCDJ-160 Φ160mm 650-800kg/h 600-750kg/h
RCSJ-160/180 Φ160/160mm 650-800kg/h 600-750kg/h
RCDJ-180 Φ180mm 800-1200kg/h 750-1000kg/h
RCSJ-180/200 Φ180/180mm 800-1200kg/h 750-1000kg/h

Solution
No. Name Picture
1 Belt conveyor with metal detector
Motor power:2.2kw
Length:5m
Material of belt:PVC
Function:
To convey plastic into compactor,metal detector will alarm when find metals.
2 Compactor
Motor power:37kw-132kw
Moving speed:600RPM
Blades material:NO.6452
Function:
To cut/heat/agglomerate film and send it to extruder
3 RCSJ model main extruder
Power:55kw-250kw
Degassing:Vacuum degassing
Screw diameter:85mm-180mm
Screw material:Bimetal/38CrMoA1A
L/D:33:1,28:1
Function:
To melting plastic and remove air impurities by degassing system
4 RCSJ180/12 main extruder
Power:22kw-110kw
Screw diameter:100mm-200mm
5 Hydrualic screen exchanger
Plate type.
Function:
To filter and stop impurities.
6 Die face cutting system
Cutting power:2.2kw-3kw
Water pump:3kw-4kw
Function:
To cut plastic into granules
Horizontal cutter
Vertical cutter
