US$0.10-0.13
|
50 Pieces
(MOQ)
|
Basic Info.
Application
Conduct Electricity
Character
High Temperature Resistance
Production Process
Injection Molding
Certification
BS, UL, VDE
Terminal
Ns32 G Type or Ns35 U Type
Transport Package
Export Carton
Production Capacity
2000000PCS/Year
Packaging & Delivery
Package Size
10.00cm * 10.00cm * 10.00cm
Package Gross Weight
0.500kg
Product Description

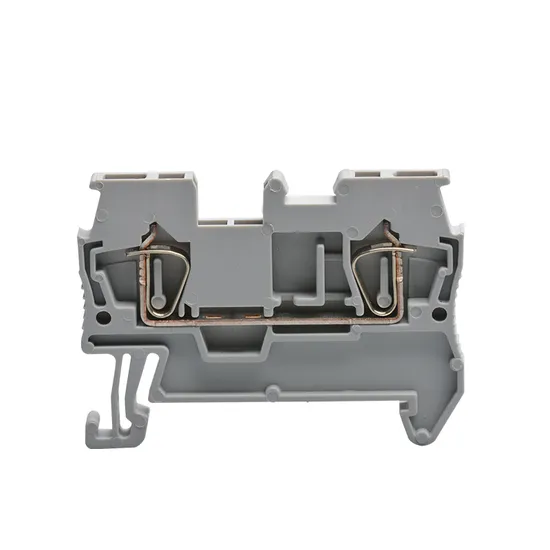

JUT3-1.5 Spring cage connection Din rail mounted terminal block
Brief Introduction
1) The insulating shell is made of imported engineering plastic polyamide (nylon) 66 with high mechanical strength, good electrical characteristics and excellent elasticity.
2) The conductive strip is made of red copper plated with matte tin, and the line-pressing frame is made of brass plated with nickel, which has good electrical conductivity.
3) Flame retardant grade UL94 V0.
4) The pull-back spring terminal is connected from the upper line, the wire entry port is set at the top of the terminal, and the wiring groove can be installed close to the terminal block, which can make full use of the space of the electrical cabinet, improve the wiring density, and provide a good angle for observing the wiring position, which is convenient for wiring. It also has a clear marking system, the largest wiring capacity, and a flexible plug-in bridge system.
5)The fuse-type terminal block adopts segmented hanging wall to connect to the G-type fuse, which is very convenient to operate. The shell adopts a fully enclosed type, which is safe and reliable. Terminals with an illuminated display give an on-off signal for the fuse. The current of this type of terminal is determined by the installed fuse, and the voltage is determined by the selected illuminated terminal display.
6) The product has universal mounting feet, which can be easily and quickly installed on the NS35 rail.
Product Description
Technical data
| Name | Data | Unit |
| Number of connection points | 2 | |
| Number of potentials | 1 | |
| Color | yellow/green | |
| Length | 48.5 | mm |
| Width | 5.2 | mm |
| With U-rail height | 36.5 | mm |
| Meet standard | IEC60947-7-2 | |
| Pollution degree | 3 | |
| Insulation material group | I | |
| Rated surge voltage | 8 | KV |
| Min.connection capacity for solid wire | 0.2/24 | mm²/AWG |
| Max.connection capacity for solid wire | 42472 | mm²/AWG |
| Min.connection capacity for strand wire | 0.2/24 | mm²/AWG |
| Max.connection capacity for strand wire | 2.5/14 | mm²/AWG |
| Line direciton | vertical to terminal | |
| Strip length | 10 | mm |
| Insulation material | PA66 | |
| Flame-retarded Rating | UL94 V-0 |
