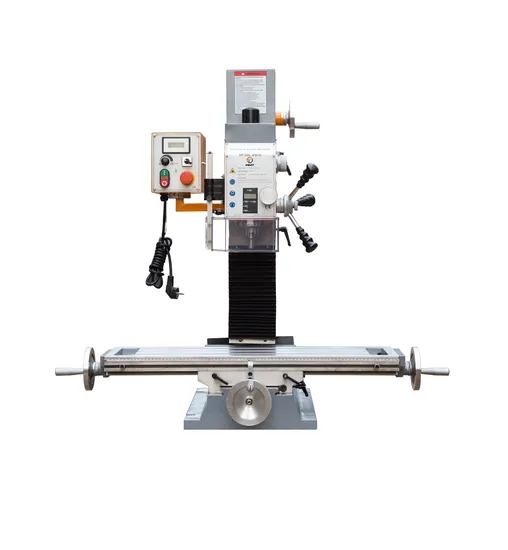

Mini Size Hobby Milling and Drilling Equipment ZAY7025LV

Product Description

Features:
1.Gear head and square column
2.Precision ground worktable
3.Tilting and swiveling head
4.With Mirco-feed hand wheel and lever down feed
5.Adjustble gibs on table
6.Adjustable stops on table
7.Accurate position ,strong rigidity,strong cutting power
8.Gear drive ,lower noise
Main Specification

Specification	ZAY7016V	ZAY7020V/ZAY7020LV	ZAY7025V/ZAY7025LV
Drilling capacity	Φ16mm	Φ20mm	Φ25mm
Max. face milling capacity	Φ50mm	Φ63mm	Φ80mm
Max. end milling capacity	Φ16mm	Φ20mm	Φ25mm
Max.distance spindle to table	220mm	355mm	355mm
Working table size	500×140mm	500(700)×180mm	500(700)×180mm
Spindle rotary angle	±90°	±90°	±90°
Spindle taper	MT2/MT10	MT2	MT3
Spindle speed	20-2250rpm	20-2250rpm	50-3000rpm
Sleeve stroke	50mm	50mm	50mm
Longitudinal travel	320mm	350mm	350mm
Cross travel	160mm	140mm	160mm
Motor power	600w	850w	1000w
N.W/G.W	70/90kgs	118/138kgs(130/160kgs)	130/158kgs(140/168kgs)
Packing size	520×450×760mm	610(810)×560×880mm	620(770)×720

Standard accessories:
Speed display,Halogen lamp,Morse taper MT2/B16,Dra in rob M10,
Drill chuck 0-13mm,Tool box & tools
Optional accessories:
Coolant pump
Milling vice
Milling chuck
End mill cutter
Stand with chip tray
Guarantee Terms: Complete service by free of charge within 13 months after B/L date Technical service will be given forever at any time. Any questions during operation, can contact us freely by email, or contact on line by Skype, WhatsApp, etc. Also can talk face to face during fairs. You will get response within 20 hours.

---
