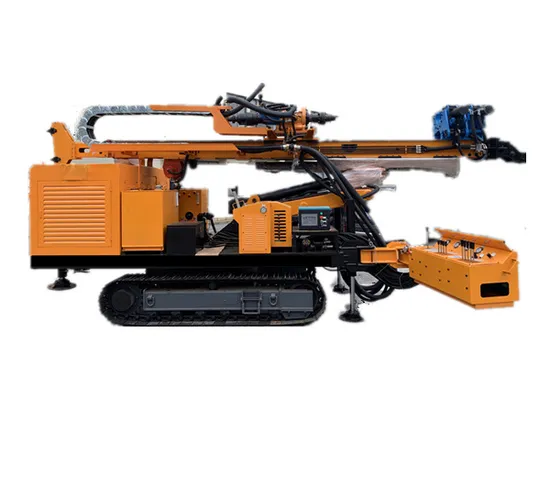

Ygl180g Full Hydraulic Crawler Anchor Engineering Drilling Rig for Sale

Product Description

Product Description
Product ProfileYGL-180G is one kind of full hydraulic power head type drilling rig. It is mounted on a crawler chassis, driven by full hydraulic system which is the common borehole machine for vertical or angle hole in drill work. It can be satisfied with different drilling techniques and methods, so it has widely application to resolve all the difficulties during the drill work even in loose cover ground, broken area or gravel area.YGL-180G is mainly used in drill work of geothermal hole, hole of high building deep basement foundation anchoring and reinforcement groundwork. It is also applied in drilling the drain hole and large tonnage prestressed anchoring hole of the geotechnical engineering such as the side slope of dam construction, railways, highways etc. Prevention of landslides, rock collapse disaster control projects; and to meet the tunnel pipe roof support holes, grouting reinforcement holes, small pile holes, hydrology well survey and construction.
FeaturesStrong drill ability, wide application, long stroke, fast drill speed, easy accidence handling, high boring efficiency.Drill head is available to change speed by gear or hydraulic. It is satisfied with various drill techniques: a. Dry auger drill
b. Down-The-Hole hammer drill
c. Mud forward circle drill
d. Medium reverse circle drill
e. ODEX tools (casing pipe following) drill with DTH hammerCrawler chassis with turning platform system, make it easy and rapidly to move and get hole position.It installs a hydraulic clamp & breakout system in order to automatic wrench the drill pipe and tools. Both assistant time and lobar intensity are reduced during work.It has drill arm which is able to adjust mast in different angle and height without moving drilling rig. Specially for anchoring drill in deep foundation basis.It can install jet grouting device in order to drill enlarge head anchoring work. It is also available for normal simplex, duplex, triplex tube jet grouting drill work.Product Parameters
Specification

Model					YGL-180G
Weight				kg	9000
Overall Dimension(L*W*H)(during transportation)				mm	6350×2200×2950
Ambient temperature				°C	-10~38
Specification of drill
Borehole depth			m		180
End borehole diameter			mm		100-350
Angle of drill			°		0~ -90
Drill head output
Rotary speed	Low speed	rpm			40/80
	High speed	rpm			70/ 140
Max output torque		N.m			8500
Feeding stroke	mm				3500
Feeding force	KN				45
Lifting force	KN				65
Engine/diesel					QSB5.9-C180-33
Engine power			KW		133
Max rotary speed			rpm		2200
Oil Pump
Big oil pump			ml/r		63
Mini oil pump			ml/r		25
Middle pump(accelerate)			ml/r		50
Mast
Feeding stroke			mm		850
Crawler(PD135)
Grounding pressure			MPa		<0.05
Climb ability			°		≯20
Width of crawler plate			mm		400

Product Details
Working Photos
In Dubai In Vietnam In Malaysia
Packaging and ShippingCompany Profile
Wuxi Jinfan Drilling Equipment Co., Ltd. (hereinafter referred to as "Jinfan") founded in 2003, is located in the Meicun Industrial Zone of Wuxi New District, with business covering more than 30 countries and regions worldwide, including Germany, Canada, etc,
Jinfan is especially devoted to research & develop, manufacture and sell anchoring drilling machine, sea engineering geological exploration drilling rig, core drilling machine and RC drilling rig, as well as their necessary accessory tools, apparatus and so on.
Jinfan offers good service to all customers both at home and abroad with tremendous technical strength and high quality of products. It provides customer at any time with technical consultation and technical service in helping the customers to select the type of equipment, to choose necessary accessory drilling tools, to provide efficient drilling technique to customers, to complete technical design of anchoring and reinforcing project, as well as to undertake construction, etc.
Jinfan sincerely hopes to establish wide contact with all its potential customers both in China and the rest part of the world. Enquires and orders are welcome.Certificates
Foreign Clients
Exhibitions
Workshop
FAQ
1. Are you a trading company or a manufacturer?We are a professional manufacturer. Our factory mainly produces ocean engineering drilling rigs, core drilling rigs, anchor drilling rigs, RC drilling rigs, etc. The products have been exported to more than 30 countries and regions around the world and enjoy a high reputation all over the world.2. How is the quality of your machine?Our products pass strict quality inspections before they leave the factory to ensure that they are qualified before they are shipped.3. How to inspect the goods?1) Support customers to come to the factory for on-site inspection.2) Support customers to designate third-party companies to inspect goods.3) Support video and photo inspection.4. Do you have after-sales service?Yes, we have a dedicated service team that will provide you with professional technical guidance. If you need, we can send our engineers to your workplace and provide training for your employees.5. How about quality assurance?We provide a one-year quality guarantee for the main machine of the machine.6. How long is your delivery cycle?1) In the case of stock, we can deliver the machine within 7 days.2) Under standard production, we can deliver the machine within 1 month.3) In the case of customization, we can deliver the machine within 2-3months.

---
