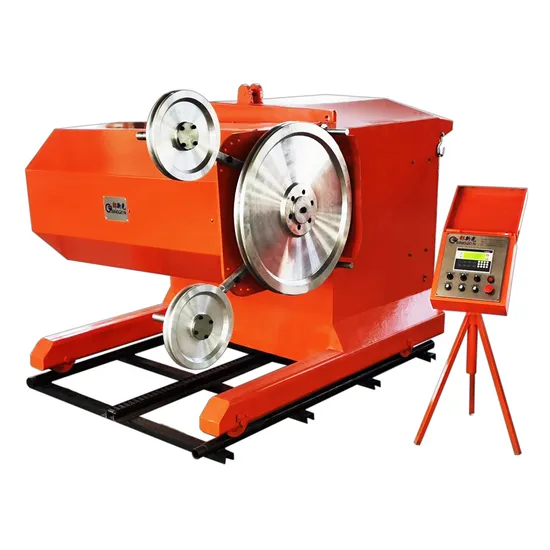

Pm 60W Diamond Wire Saw Machine for Stone Quarry,

US$18,500.00
1-2 Pieces
US$18,000.00
3-4 Pieces
US$17,500.00
5+ Pieces

Basic Info.

Model NO.
XG PM 60W
Type
CNC Cutting Machine
Usage
Jadestone, Granite, Marble
Application
Machinery & Hardware, Stone Industry
Source Voltage
380V
Automation
Automatic
Cutting Ability
High Speed
Control
CNC
Certification
ISO
Advantage
Weight Is More Weisght
Motor
Pm 60W
Transport Package
Wooden Packing
Specification
2200*1650*1700mm
Trademark
singoon
Origin
Jiangxi
HS Code
8464909000
Production Capacity
10 PCS/Month

Product Description

Description of Diamond Wire Saw Machine Type: Stone cutting machine
Main motor: PM 60kw Flywheel's diameter: 800mm
Guide Pulley's diameter: 2*380mm
Wire speed: 0-40 m/s
Walking motor: 1.5kw
Waling speed: 0-30 m/h
Adjustment distance: 450mm
Rotation angle: 360°
Max length of wire saw: 60m
Net weight: 2600kg
Product Parameter
Model 55KW-6P 55KW-8P PM 60KW PM 70KW 75KW-6P
Gross power of machine(KW) 59KW 59KW 64KW 74KW 79KW
Power of main motor(KW) 55KW 55KW 60KW 70KW 75KW
Wire saw speed(M/S) 0-40 0-33 0-40 0-40 0-40
Length of wire(M) 20-120 20-120 20-120 20-150 20-150
Feeding power(KW) 1.5KW 1.5KW 1.5KW 1.5KW 1.5KW
Sideways range(mm) 560 560 560 560 560
Rotation angle 360° 360° 360° 360° 360°
Walking speed of machine(m/h) 0-112 0-112 0-112 0-112 0-112
Length of rail(m) 2m*3+1m 2m*3+1m 2m*3+1m 2m*3+1m 2m*3+1m
Working temperature range(ºC) -15ºC~
+40ºC
-15ºC~
+40ºC
-15ºC~
+40ºC
-15ºC~
+40ºC
-15ºC~
+40ºC
Power(AC V/HZ) AC330V~420V, 50/60Hz
Weight(T) 2.8T 2.8T 2.6T 2.6T 3.2T

Main Advantage All electrical accessories of the equipment (such as contactors, intermediate relays, air switches, etc.) are imported from France Schneider and Japan Omron. The operating desk panel selection switch uses the ABB products imported by Switzerland and strong dustproof. The speed control potentiometer on the console uses Japanese imported multi-ring potentiometers, which has the characteristics of high control system, high stability, low failure rate. The machine does not require the phase of the power supply, and there is no need to identify and exchange the power phase so that the mine workers operate and improve work efficiency. Both movement and rotation angles (360 °) of the head are electrically driven and the photoelectric proximity switch is installed, and it works fine in a harsh environment of moisture and dust. Machine head lifting and rotation can be controlled by the work desk, and the staff can remotely operate the machine. Automatic refueling and refueling ports are installed in the main gear and screw active parts of the equipment, which makes the equipment maintenance easier. All the control switches of our wire saw machine are 24V volt human safety voltage, which can effectively protect the safe operation of workers; Our wire saw machine has a derailive alarm design, and the equipment is automatically stopped when the equipment is complete during night and unmanned. The main motor adds a bearing refueling column to improve the motor working efficiency and increase the service life of the motor bearing. The equipment control cabinet has a fully sealed constant temperature control cabinet of our company's invention patent, and the door frame adds a dust-proof seal strip to avoid dust from entering the machine The console control cable is a special cable customized by our company according to the special environment of the mine. This cable has strong tensile resistance, high and low temperature resistance, oil resistance, acid and alkali resistance. The protection levels of all motors are IP55, the button switch and the electric control box are IP65, and the whole machine protection level is IP55. Application
Granite and Marble Quarry
