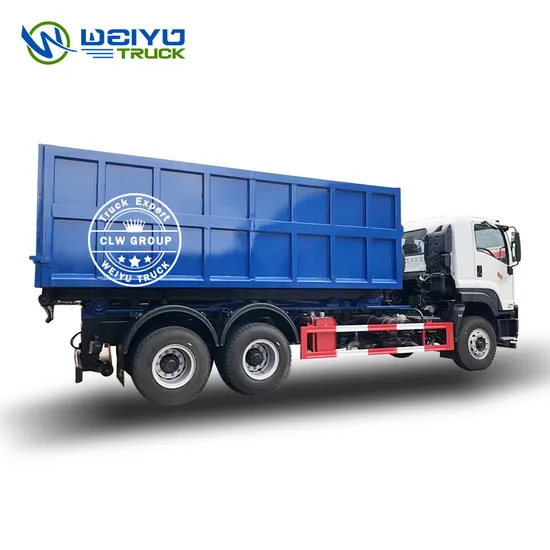

Japanese Brand 22cbm Hook Lift Garbage Truck Rubbish Collector Waste Treatment Truck

Product Description

Japanese brand 6*4, 10 wheels 20tons hook lifting garbage collection truck
Product Description:
1. Garbage Bin with different size options of waste collection truck: 2cbm to 22cbm.2. Hydraulic Control Loading & Unloading System.3. Different shapes of roll on roll off waste truck bins such as trapzoid,boat-shape,square shape and so on and divided into above-ground and under-ground type.4. High-tensile steel chains: imported hydraulic oil cylinder and sealing material.5. Lifting oil cylinder: double oil cylinder under garbage box,so garbage box can be lifted and self-dumped.6. Double rear landing leg controlled by hydraulic multi-way valve to stablise truck.
Specifications:

Truck model	Japanese brand FVR, FVZ
Drive style	Left hand drive
Drive model	6x4
Dimensions(LxWxH)	8865x2500x3290 MM
Cargo body	22 cbm
Loading weight	20ton
Engine	6HK1-TCG60, 300hp
Emission standard	EURO 5
Front axle	HF7, 7tons loading capacity
Rear axle	HC10*2, 10tons loading capacity
Transmission	FAST, 9 forward & 2 reverse.
Steering system	ZF8118, hydraulic steering with power assistance
Tires	295/80R22.5, 10+1spare

Upperstructure Specification
Garbage Hopper	Dimension	5600×2300×1500mm
	Standard Configuration	With one garbage bin, with hydraulic rear outrigger
	Volume	Ground type, 20CBM or 22cbm
	Loading Capacity	18tons or 20Tons
	Thickness	5mm, Carbon Steel Q235B
Dump type	Hydraulic cylinder lifting and self-loading
Dump angle	≥45°
Hydraulic system pressure	≤16Mpa
Protective Material	Q235A Carbon Steel
Controlling Way	Three-way hydraulic control valve
Other Configuration	Reinforced hydraulic swept-body system, with Double hydraulic cylinder Swing Arm, Chain. Hydraulic multi-way valve control.
Options	Electronically controlled valve, trash bin type, trash bin quantity, etc.

Operation pictures are for reference only:
Products Catalog:
1. LPG Tank Truck Trailer/ Fuel Tanker Truck/ LPG station
2. Water truck / Water Tank Truck / Water Sprinkler Truck/Water Tanker
3. Truck with crane / Truck mounted crane
4. Dump Truck / Tipper Truck/Side Tipper/End Tipper
5. Fire Fighting Truck / Fire Truck / Fire Vehicle
6. Concrete Mixer Truck
7. Van truck /Refrigerated truck
8. Fecal suction truck / Sewage suction truck,
9. Cement Powder Tank truck/ Bulk cement truck
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truc
12. Tractor
13. High Pressure Cleaning Truck
14. Sweeper Truck
15. Semi Trailer ( flat bed trailer / skeleton trailer / dump semi trailer / side wall trailer / low bed trailer / van container trailer / warehouse trailer, etc. )Spare Parts1. Supplying quick-wearing parts at the truck delivery.
2. Good quality parts produced by the truck manufacturing factory.
3. Only charge cost price for customer convenience.Mr. Lea LIU
Sales Director
Hubei Chengli Special Automobile Co., Ltd.
Hubei Weiyu Special Vehicles Co., Ltd.
Factory:Chengli Automobile Industry Park,Suizhou City,Hubei Province,China
Office:Room 2614-2615,Block B,Longyang Time Square,Hanyang District,Wuhan,China
Customized Trucks&Trailers to Meet Your Request!

---
