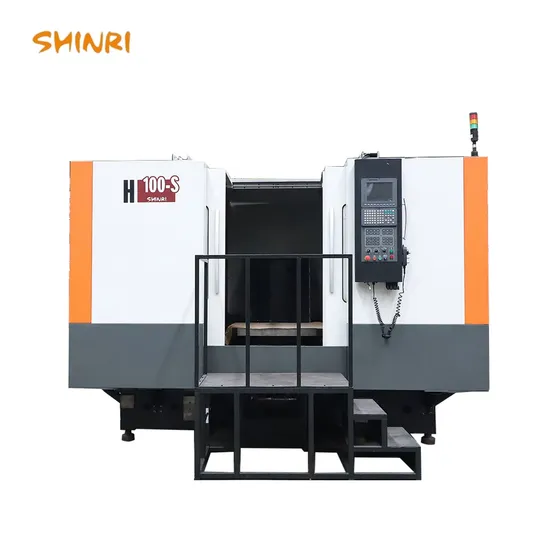

H100-S Two-Sided Horizontal Machining Center Specialized in Processing Heat Sinks 3-Axis Equipped with 1000× 1000mm Mesa

Product Description

Product Description
1.H100-S Two-sided horizontal machining center is specialized in processing heat sink machine tool for customer, is composed of two horizontal machining center head boring,equipped with 1000X1000mm mesa, 4x90° degrees CNC turntable, in order to achieve the parts' four face milling, drilling, tapping and other processes.
2.The bed structure of the whole machine tool was analyzed by FEM finite element method, the optimum stiffness and stability can be guaranteed. The casting is made of high strength cast iron and resin sand process modelling. The rigidity and strength of the bed can be improved by reasonable arrangement of ribbing board, and the stress can be eliminated by artificial aging treatment, so as to ensure good precision maintenance.
3.The guide rail pair of each axis adopts rolling linear guide rail, small change in kinetic and static friction, high sensitivity of moving parts, low vibration at high speed,no creep at low speed, high positioning accuracy,excellent servo drive performance; at the same time,the carrying capacity is large, the cutting anti-vibration performance is good, it will be improve the characteristics of machine tools, the precision and precision stability of machine tools and the service life of machine tools.
4.AC servo motor is used to drive ball screw directly in all three axes, it can reduce the transmission chain and improve the reliability and precision.
a)High precision bearing is adopted,and the ball screw is pre-stretched to improve the stiffess and transmission accuracy of the screw pair.
b) Using high precision ball nut screw pair can prolong the service life of the machine tool.
c) The three-axis drive adopts AC servo motor and drives the ball screw directly through the coupling, which can ensure the rapid response and smooth cutting of the machine during machining.
Product Parameters

Item	Specification	Unit	H100-S
Travel	X/Y/Z axis travel	mm	1000/600/550
	Distance between worktable center to spindle nose	mm	100-1000
	Distance between worktable to spindle center line	mm	125-725
	Mini. distance between two spindle faces	mm	300
Pallet and Worktable	Pallet size	mm	1000×1000
	Max. pallet load	kg	1000
	No. of pallets	pcs	1
	Distance between worktable surface to ground floor	mm	1000
Spindle	Standard Spindle speed	r/min	50-30000
	Spindle motor	kW	8.5
	Spindle taper		HSK-E40
Feeding speed	Rapid feed rate(X/Y/Z)	m/min	30/30/30
	Feed rate	m/min	25
Tool magazine	Magazine capacity	tools	16X2
	Max. weight of tool	kg	3
	Tool change time (Tool-To-Tool)		5.5
	Max. tool diameter (Adjacent full)	mm	Φ50
	Max. tool diameter (Adjacent empty)	mm	Φ90
	Max. length of tool	mm	110
	Shank type		HSK-E40
Accuracy	Positioning accuracy	mm	X/Y/Z axis: 0.010
	Repeatability	mm	X/Y/Z axis: 0.006
	B axis positioning accuracy	″	12 (tooth disk)
	B axis repeatability	″	8 (tooth disk)
Control system FANUC Oi-MF
Power supply	Air source	Mpa	0.5~0.8
	Power (3 phase AC380V, 50/60HZ)	KVA	60
Machine weight		T	9

Company Profile
SHINRI CNC Machinery Group is consisted of Jiangsu Shinri Heavy lndustry Science &Technology Co., Ltd, Jiangsu Shinri Gear Systems Co., Ltd Ningxia Shinri Changcheng Machinery Co., Ltd, Ningxia Shinri Changcheng Casting Company Co., Ltd. Lt is subordinate to the New United Group. Shinri products covered three time-honored brands, respectively Shinri, Changcheng and Duoleng and 12 different products series. So far Shinri becomes one of the biggest machine tool manufacturers covering nearly alltypes of machines in China.
By embracing new, high and outstanding technology, Shinri opens his hands to escalate his customers from their traditional applications and gives optimized solutions. The two R&D centers and manufactory bases, in Changzhou and Yinchuan, have totalarea of premises of 700 thousands m and 300 thousands m modernized plants. We introduced a good number of high precision mother machines from world first class makers and the yearly machine production reaches to 3500 pieces or more. In Yinchuan city, by invested 600 mllion RMB, the first phase of construction of foundry plant has established with yearly capacity 40 thousand tons With strong financial, intelligent and technical supports, the company is gigantic in R&D and manufactory.
Its products list covers VMC, HMC, CNC lathe, gantry boring milling/machining center/5 faces/5-axis synchronous, floor type boring milling/machining center, end facing & centering machine, drilling machine, FMC, FMS, Railway gear box, Wind power gear box and industrial gear box etc. The products are broadly applicable to aerospace, automobile, shipbuilding, electronic appliance, new energies sources, railway traffic, engineering mechanic, petro chemistry, die tooling and vocational education...etc.
As a national enterprise endowed with the mission of rejuvenating Chinese traditional industry, Shinri will follow the concept ofputing people first, making innovations & building a future of excellence. Work under the guiding principle of providing the highquality products & best service for customers in order to become the most competifive CNC machine tool manufacturer & bestsolution provider at home & abroad.

---
