Product Description
Product Description

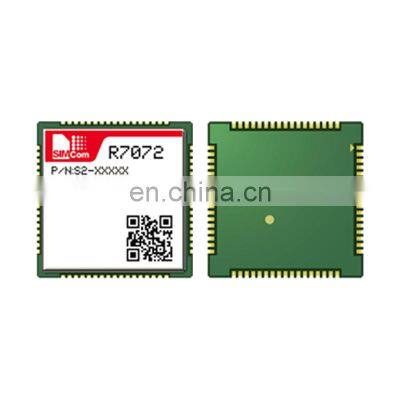

DescriptionR7072● R7072 is the LPWA module which supports wireless communication modes of Cat-NB/GPRS.● R7072 adopts LCC form factor and has a compact size of 24mm*24mm which makes it ideal for compact products design.● R7072 has powerful expansibility with abundant interfaces including UART, GPIO, I2C etc. The R7072 is designed for applications that need low latency, low throughput data communication in a variety of radio propagation conditions. Due to the unique combination of performance, security and flexibility, this module is ideally suited for M2M applications, such as metering, asset tracking, remote monitoring, E-health etc.Product Advantages● With Power Saving Mode(PSM) and Extended Discontinuous Reception(eDRX), R7072 can extend battery life up to 10 years● R7072 provides deeper coverage enhancement compared to GSMGeneral FeaturesPower ConsumptionFrequency Bands:Cat-NB B3/B5/B8/B20/B28GSM 900/1800MHzSupply voltage range: 3.4V ~ 4.2VControl Via AT CommandsOperation temperature: -30℃ ~ +75℃Dimensions: 24*24*2.5mmWeight: 2.7±0.2gPSM: 4.5uASleep: 0.7mAIdle:(AT+CSCLK=0；AT+CFUN=1）GSM Typ.:11mANB-IOT Typ:9.5mAeDRX: 0.8mA (PTW=25.6s；eDRX=162.84s；DRX=2.56s)DataOther FeaturesCat-NB:Uplink 15.625KbpsDownlink 127KbpsGPRS:Uplink 171.2KbpsDownlink :21.25 KbpsTCP/UDP/HTTP/HTTPSPING/MQTT/TLS*/DTLS*LWM2M/COAPFirmware update via UARTFOTAInterfacesCertificationsUARTSIM (1.8V/3.0V)I2CGPIOADCRoHS* / REACH*CE*RoHS/REACHWhy Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All CategoriesWireless ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Coaxial AssemblySIM Card HolderSensorIC
>>
