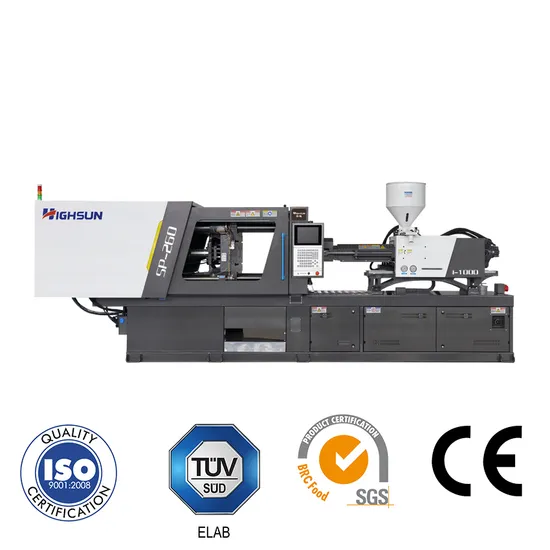

Plastic Injection Molding Machine Sp250/I1000

Product Description

1.The plasticizing parts with optimized design can improve the plasticizing ability and injection precision of the machine significantly;Screw transmission adopts the spline to connect and the force is uniform when the screw rotates,Tthe moving part is guided by linear guide rail to reduce friction during movement.
2.The clamping parts with optimized design has a mold-plate structure with a pressing center,which makes the clamping force act on the mold-plate directly and improves the forming accuracy of the product,and it has a larger moving mold-plate stroke as well as reduces the contact stress of the axis pin.
3.Newly designed lateral mechanical safety structure;The feet slip structure of moving mold-plate is newly designed with oblique-wedge.
4.Adopt high-precision controller system,provide performance more stable,higher repetition precision,stronger anti-interference and higher level of security protection.Also standard with fuction of energy consumption monitorning.
5.The movement curve of newly designed five-points double toggle structure shows that the movemen of movable mould-plate has advantages of being faster,more stable and better controllability,And also quicker cycle.
6.Hydraulic power system uses the motors with high response,high power density,low inertia and low noise to bring unique feeling of high performance and low noise to customers with improved screw pump.

MODEL: SP250/i1000
TECHNICAL PARAMETER TABLE			A	B	C
INJECTION UNIT	SCREW DIAMETER	mm	50	55	60
	SCREW L/D RATIO	L/D	22	20	20
	INJECTION CAPACITY IN THEORY	cm3	490	593	706
	INJECTION WEIGHT(PS)	g	446	540	643
	INJECTION PRESSURE	MPa	236	194	163
	INJECTION RATE	g/s	204	247	294
	PLASTICIZING CAPACITY	g/s	24	31	40
	SCREW SPEED	rpm	210
CLAMPING UNIT	CLAMPING FORCE	KN	2500
	MOVING MOULD-PLATE STROKE	mm	580
	MAX. MOULD HEIGHT	mm	650
	MIN. MOULD HEIGHT	mm	250
	SPACE BWTWEEN TIE-BARS (W×H)	mm	580X580
	HYDRAULIC EJECTOR FORCE	mm	87
	HYDRAULIC EJECTOR STROKE	KN	160
	EJECTOR NUMBER	n	13
OTHERS	PUMP PRESSURE	MPa	17.5
	MOTOR /DRIVING POWER	KW	37
	HEATING CAPACITY	KW	16.83
	MACHINE DIMENSION (L×W×H)	m	5.8X1.65X2.23
	MACHINE WEIGHT	t	9
	OIL TANK CAPACITY	L	300

---
