High Performance Ultra Professional Advanced Firefighter Engine Truck

Product Description

Product Description
Fire fighting truck is the emergency rescue fire truck which could be water fire truck or water and foam fire truck, it could be equipped with different brand of chassis to reach different demand.
Fire fighting truck is special purposed vehicle to carrying out the task of conflagration, but also with the usage of emergency rescue. It could be transport the firemen to the fire field and provide different kinds of rescue tools.
The normal fire fighting truck could be divided into: water tank fire truck, water and foam tank fire truck, pumping fire truck, elevated fire truck, scaling ladder fire truck, etc.

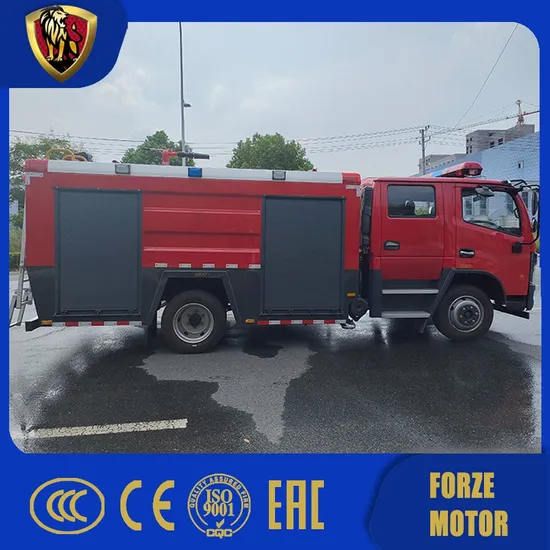

This Official 5m3 fire truck is equipped with the latest technology and features to ensure efficient and effective firefighting operations. With a capacity of 5m3, this fire truck is designed to handle various emergency situations with ease. From extinguishing fires to rescuing individuals, this truck is a reliable and essential tool for any fire department.

Vehicle description
Overall dimension	6960*2200*2810mm
GVW	11300kg
Curb weight	6050kg
Chassis brand	Dongfeng
Traction type	4*2, left or right hand drive
Chassis description
Chassis model	EQ1125SJ8CDC
Cab	Double row, 3+3 seats with AC
Wheelbase	3800mm
Tire specification	245/70R19.5
Tire quantity	6+1 units
Engine	Engine model	D30TCIF1
	Emission level	Euro 2 3 4 5 6 optional
	Displacement/output	2977ml/125kw
	Horse power	170hp
Brake system	Full air brake, power steering, spring brake, exhaust brake
Axle	Front	3.5T
	Rear	7.8T
Suspension	Front	Leaf spring
	Rear	Leaf spring
Up-parts description
Tanker capacity	Water tanker		5-6cbm
Standard configuration	1 set manhole with quick lock and open device; 1 set overflow device; 1 set fluid level gauge; 1 set drain outlet with manual controlled.
Fire pump	Model			CB10/30, normal pressure pump
	Flow			30L/S
	Pressure			1.0Mpa
	Suction depth			7m
Fire monitor	Model			PL24
	Pressure			0.8Mpa
	Range			water≥55m ,Foam≥50
	Rotation angle			Horizontal 360° Pitch -35°~70°
Other configuration	Equipped with sandwich PTO, pipeline system; Equipped with equipment box and pump box; Equipped with flip pedal and electric system. Other equipment.
